Home /Products/Explosion Proof Lighting/Explosion Proof Lighting with IP66 Protection Stainless Steel Construction and Rechargeable Function for Hazardous Areas

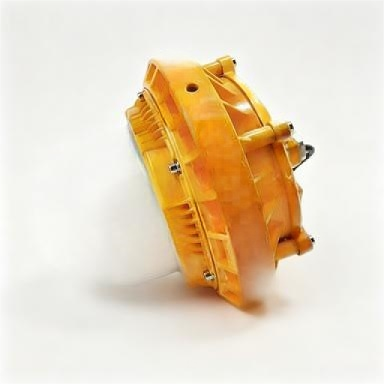

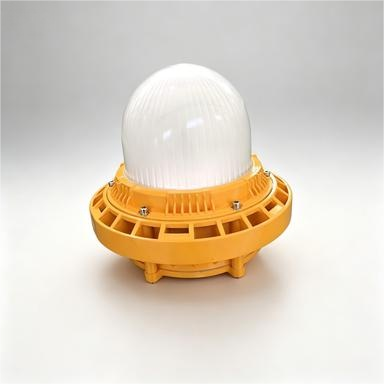

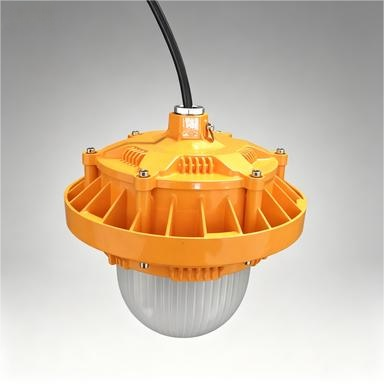

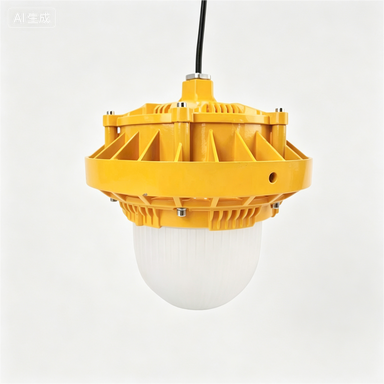

Explosion Proof Lighting with IP66 Protection Stainless Steel Construction and Rechargeable Function for Hazardous Areas

Explosion Proof Lighting with IP66 Protection Stainless Steel Construction and Rechargeable Function for Hazardous Areas
Features Gallery Product Description Chat Now
Features
Specifications
Degree Of Protection: IP65, IP66
Working Temperature: -45 - 50℃
Lumen Output: 4680lm
Rated Voltage: 100-277VAC,50/60Hz;220-240VAC 50/60Hz
Cable Entries: G3/4"
Colour Temperature: 5700K
Basic Infomation
Place of Origin: CHINA
Brand Name: Cherubim
Certification: ATEX
Payment & Shipping Terms

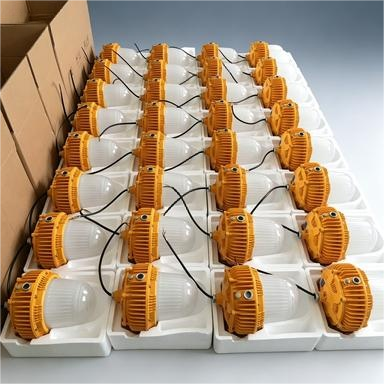

Packaging Details: carton
Delivery Time: 5-9days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50000set/Month
Product Description
Explosion Proof Lighting
Product Overview

Designed for heavy industrial applications requiring explosion resistance and superior lighting performance.

Typical Applications
  • Zone 1 and Zone 2
  • Zone 21 and Zone 22
  • Class I, Zone 1 and Zone 2
  • Class IIA, IIB, and IIC explosive gas environments
  • T1 - T6 temperature groups
Key Features
  • Applicable lamp and power (max. 100V)
  • LED options: 50W, 70W, 100W, 150W
  • Low-maintenance costs due to long service life
Technical Specifications
Specification Details
EX Mark Exde IIC T6 Gb / Ex tD A21 T80℃
Enclosure Copper-free aluminium alloy, powder coated surface, yellow
Transparent Cover Toughened glass, stands 4J impact
Exposed Fastener Stainless steel
LED Driver Wide voltage input, CC-CV (constant current - constant voltage) output
Lamp Specification LED
Lamp Power (W) 50W, 70W, 100W, 150W
Colour Rendering Index (Ra) >80
Colour Temperature (CCT) 5700K (cool white available in general)
Rated Voltage 100-277VAC, 50/60Hz; 220-240VAC 50/60Hz
Degree of Protection IP66
Mounting Ceiling type, wall type, bracket type
Cable Entries G3/4"
Available Cable Outer Diameter Φ10mm-Φ14mm
Note: This explosion-proof lighting solution is engineered for maximum safety and reliability in hazardous industrial environments.
Tag:

Explosion Proof Light Fixture

Explosion Proof LED Light

LED Explosion Proof Light
