Home /Products/Explosion Proof Fan/Explosion Proof Oscillating Fan for Hazardous Locations | ATEX Certified

Explosion Proof Oscillating Fan for Hazardous Locations | ATEX Certified

2
MOQ
90USD-150USD
Price
Explosion Proof Oscillating Fan for Hazardous Locations | ATEX Certified
Features Gallery Product Description Chat Now
Features
Specifications
Fan Diameter: 500mm;600mm;750mm
Ex Mark: Exd IIC T4 Gb
Material: Die-cast Aluminum Alloy
Voltage: 110V/220V/380V
Motor: Explosion-proof Copper Motor
Air Volume: 6600~18000 M3/H
Protection: IP55
Highlight:

Explosion Proof Oscillating Fan ATEX Certified

,

Hazardous Locations Oscillating Fan

,

ATEX Certified Explosion Proof Fan
Basic Infomation
Place of Origin: China
Model Number: FB-BTS
Document: FB-BTS.pdf
Payment & Shipping Terms
Packaging Details: Cartons or Pallets
Delivery Time: 7 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000/month
Product Description
Explosion Proof Oscillating Fan for Hazardous Locations | ATEX Certified
High-performance explosion-proof oscillating fan designed for safe operation in hazardous environments with ATEX certification.
Product Specifications
Type Watt (kw) Volume (m³/h) Speed (r/min) Voltage (V) Blade Diameter (mm)
FB-500 0.37 6600 1450 110V/220V/380V 500
FB-600 0.55 9600 1450 110V/220V/380V 600
FB-750 0.75 18000 1450 110V/220V/380V 750
Product Gallery

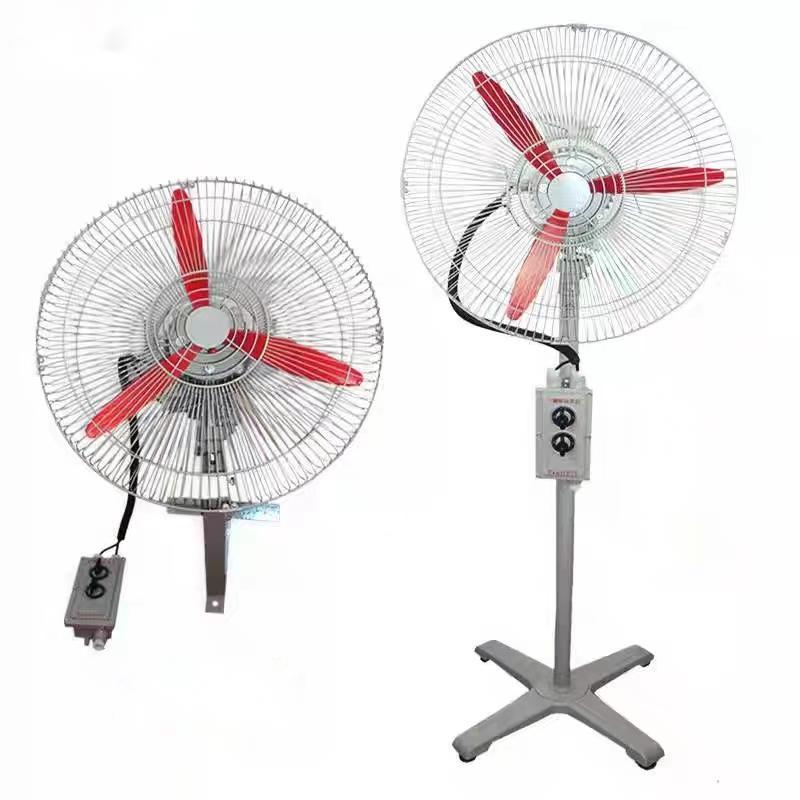

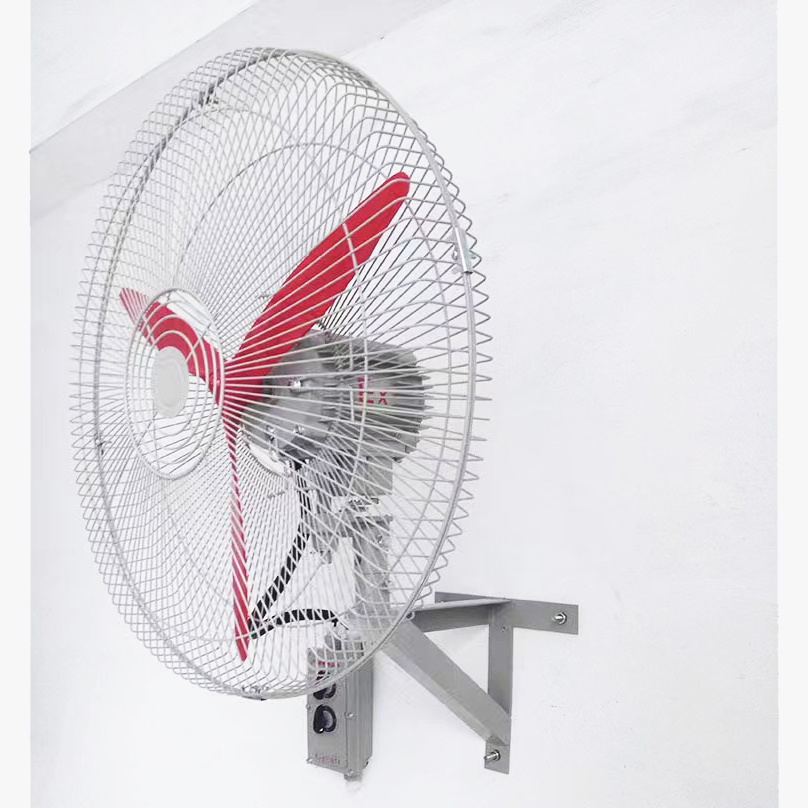

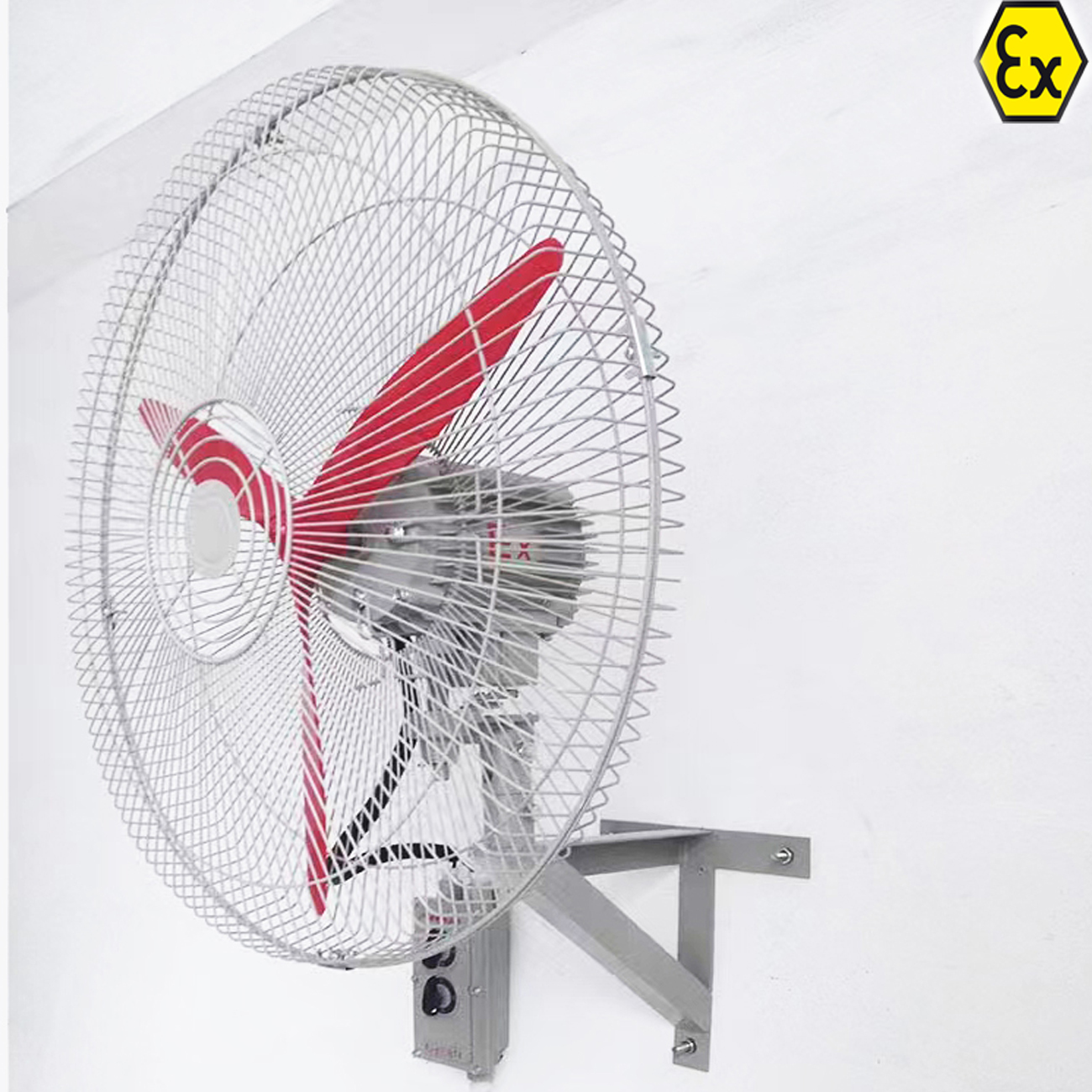

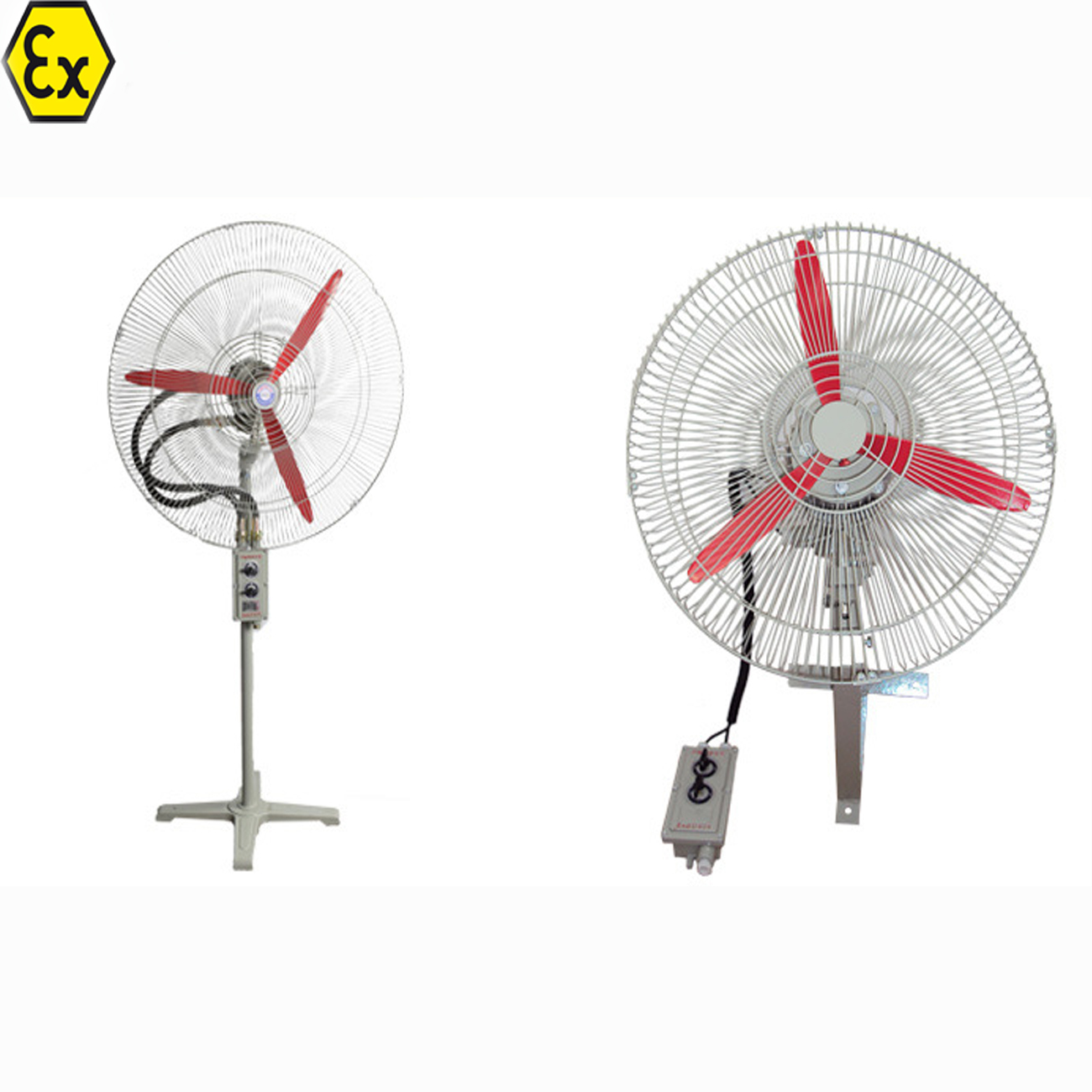

Explosion proof oscillating fan front view Explosion proof oscillating fan side view Explosion proof oscillating fan installation view
Product Features
  • Explosion-proof ceiling fan consists of Ex-motor, blades, and cylinder components
  • Air duct constructed from quality steel plate welding with aluminum alloy cast blades featuring high-voltage static plastic-sprayed surface
  • Aesthetic appearance with integrated one-body assembly frame, safety features, damping device, and low operating noise
  • Conduit wiring system for secure electrical connections
Applications
  • Easy installation with floor-standing and wall-mounted options
  • Equipped with explosion-proof copper motor (Ex d IIC T4 Gb rating) and IP54 waterproof/dustproof protection for use in flammable, explosive, and dusty environments in Zones 1&2, 21&22
  • Premium motor construction using international high-purity copper wire with die-cast aluminum fan blades and IP66 explosion-proof switch
Technical Specifications
  • Implementing Standards: GB3836.1-2000, GB3836.2-2000, IEC60079
  • Explosion-proof Mark: Exd IICT4
  • Rotation Speed: 1450 r/min
  • Inlet Specification: G3/4
  • Cable Specification: 9mm~14mm
Frequently Asked Questions
How can we guarantee quality?
Always a pre-production sample before mass production. Always final inspection before shipment.
Do you have any MOQ limit for light order?
MOQ, 1pc for sample checking is available.
Can you accept putting my logo on light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW.
Accepted Payment Currency: USD, GBP, CNY.
Accepted Payment Type: T/T, L/C.
Language Spoken: English, Chinese
Warranty
Our products are produced under strict quality control with a defective rate less than 0.2%. During the guarantee period, we will send new lights with new orders for small quantities. All products are tested before shipment and packaged properly. For defective batch products, please test before assembly and inform us within 3 days of receipt for replacement confirmation.
