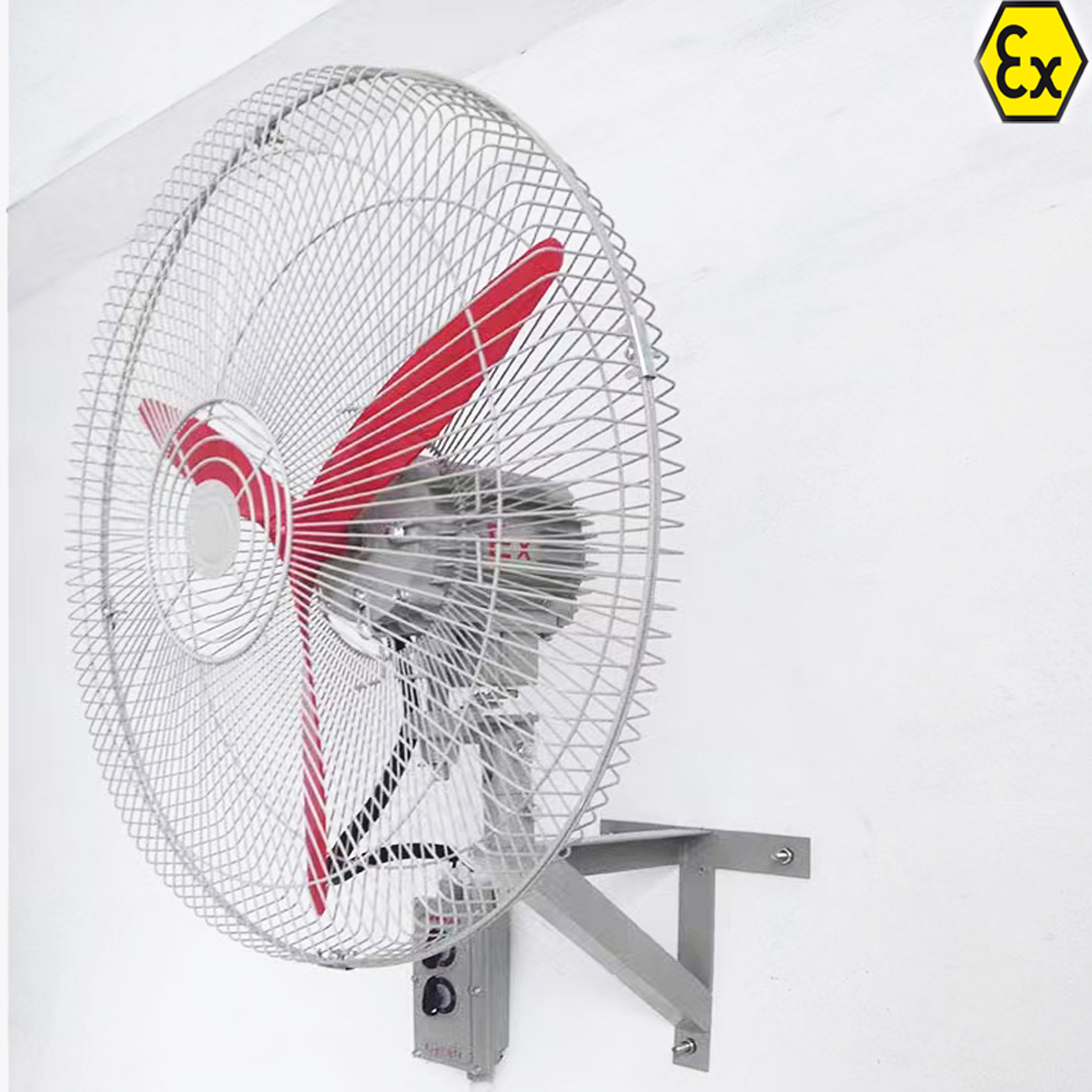

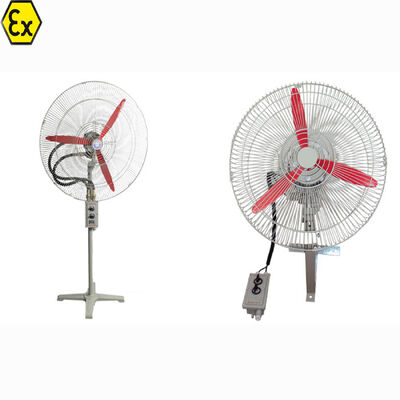

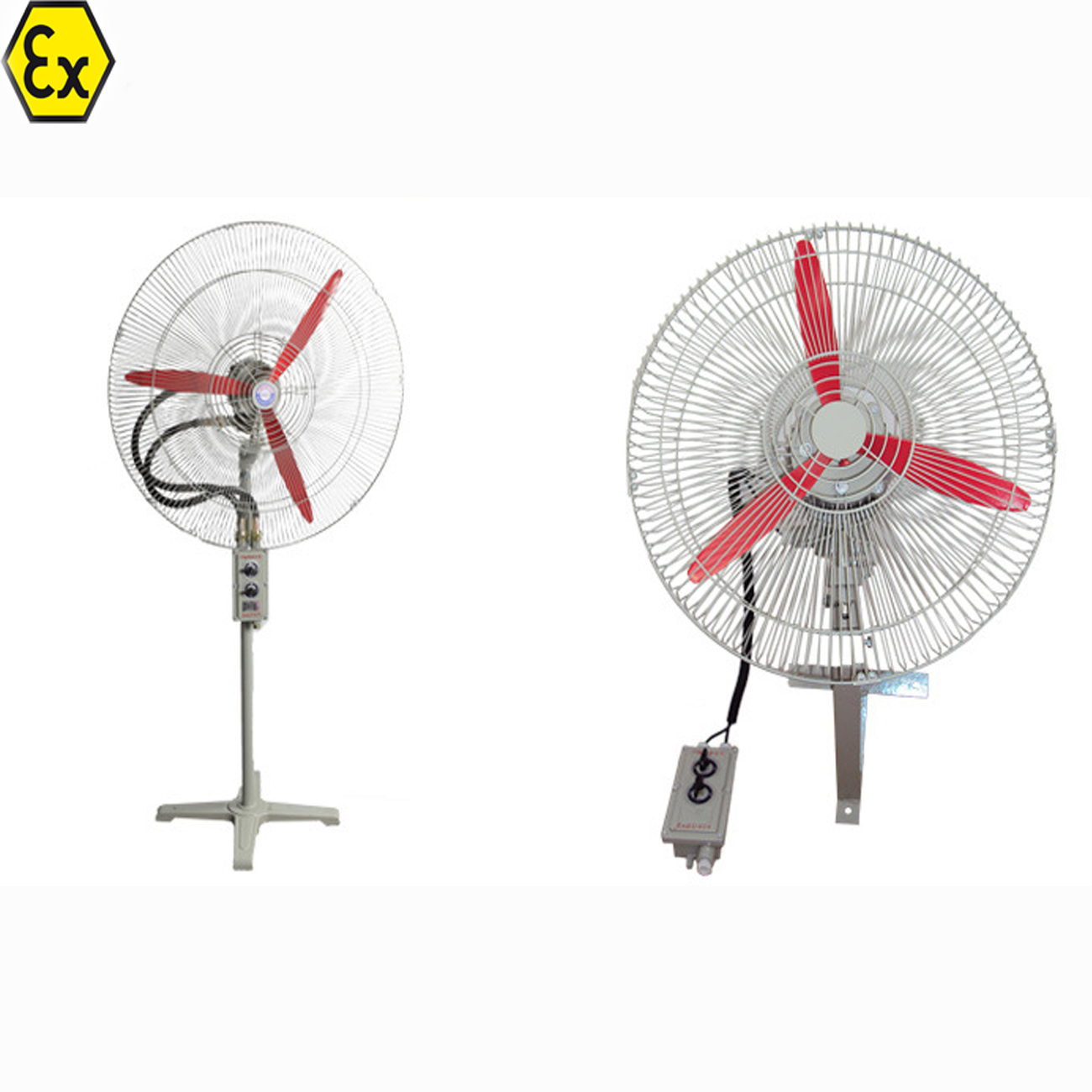

Explosion Proof Oscillating Fan | Industrial Hazardous Area Cooling Fan

2
MOQ
90USD-150USD
Price
Explosion Proof Oscillating Fan | Industrial Hazardous Area Cooling Fan
Features Gallery Product Description Chat Now
Features
Specifications
Name: Explosion Proof Oscillating Fan | Industrial Hazardous Area Cooling Fan
Model: FB
Matrial: Die-cast Aluminum Alloy
Motor: Explosion-proof Copper Motor
Ex Mark: Exd IIC T4 Gb
Protection: IP55
Type: Wall Mounted And Standing Type
Voltage: 110V/220V/380V
Fan Diameter: 500mm;600mm;750mm
Air Volume: 6600~18000 M3/H
Warranty: 1 Years
Basic Infomation
Place of Origin: China
Model Number: FB-BTS
Document: FB-BTS.pdf
Payment & Shipping Terms
Packaging Details: Cartons or Pallets
Delivery Time: 7 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000/month
Product Description
Explosion Proof Oscillating Fan | Industrial Hazardous Area Cooling Fan

Type

Watt

(kw)

Volume
(m3/h)
Speed
(r/min)
Voltage
(V)
Bladediameter
(mm)
FB-500 0.37 6600 1450 110V/220V/380V 500
FB-600 0.55 9600 1450 110V/220V/380V 600
FB-750 0.75 18000 1450 110V/220V/380V 750


Product Features
  • Explosion-proof ceiling fan consists of Ex-motor, blades, and cylinder components
  • Air duct constructed from quality steel plate welding with aluminum alloy cast blades featuring high-voltage static plastic-sprayed surface
  • Aesthetic appearance with integrated one-body assembly frame, safety features, damping device, and low operating noise
  • Conduit wiring system for secure electrical connections
Applications
  • Easy installation with floor-standing and wall-mounted options
  • Equipped with explosion-proof copper motor (Ex d IIC T4 Gb rating) and IP54 waterproof/dustproof protection for use in flammable, explosive, and dusty environments in Zones 1&2, 21&22
  • Premium motor construction using international high-purity copper wire with die-cast aluminum fan blades and IP66 explosion-proof switch
Technical Specifications
Implementing Standards: GB3836.1-2000, GB3836.2-2000, IEC60079
Explosion-proof Mark: Exd IICT4
Rotation Speed: 1450 r/min
Inlet Specification: G3/4
Cable Specification: 9mm~14mm

1. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.

2.Do you have any MOQ limit for light order?
MOQ, 1pc for sample checking is available.

3. Can you accept put my logo on light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

4.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW.
Accepted Payment Currency: USD,GBP,CNY.
Accepted Payment Type: T/T,L/C.
Language Spoken: English,Chinese

5.Warranty
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new lights with new order for small quantity. All products have been tested before the shipment and it was packaged in good condition.For defective batch products,
Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
