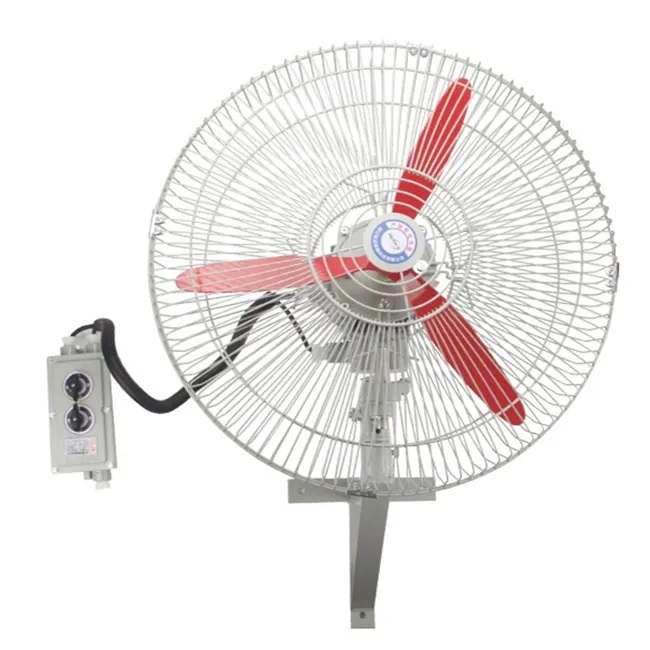

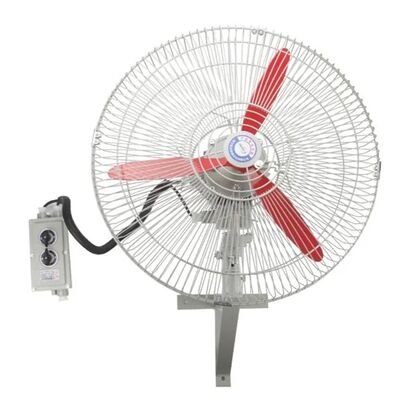

Wall Mounted Explosion Proof Oscillating Fan for Hazardous Locations
High-performance explosion-proof oscillating fan designed for safe operation in hazardous environments with ATEX certification.
Product Specifications
| MODEL |
Blade diameter(mm) |
Power(kw) |
Speed(r/min) |
Air volume(m/h) |
| FB-500(L) |
500 |
0.37 |
1450 |
6600 |
| FB-600(L) |
600 |
0.55 |
1450 |
9600 |
| FB-750(L) |
750 |
0.75 |
1450 |
18000 |
WIND LEAF MATERIAL: ALUMINUM ALLOY
NOISE: 50-60dB
BEARING TYPE: BALL
VOLTAGE: 220/380V
CERTIFICATION TYPE: CQC
CEILING MOUNTING: SINGLE SCREW FIXING
TYPE: AC FLOOR SHAKING FAN
ENERGY EFFICIENCY LEVEL: LEVEL 3
MOTOR: COPPER MOTOR
AIR OUTLET DIRECTION: NORMAL WIND
EX MARK: EX D IIC T4 GB
FAN STYLE: COLUMN TYPE
BLADE ANGLE: 30°
NUM OF BLADES: 3
Certifications
ATEX, CE, IP55, IK10, ROHS, ISO9001
Applications
- Gas Station
- Factory And Industry
- Dust Explosion Area
- Equipment Depot
- Metallurgical Industry
- Workshop Warehouse
- Machining
- Filling Station
- Explosive Workshop etc.
Product Description
Explosion-proof oscillating fans are specialized industrial fans designed for use in flammable and explosive environments.
They combine the automatic swinging airflow of conventional oscillating fans with explosion-proof safety features.
Their core purpose is to provide safe and efficient ventilation and cooling in areas where flammable gases, vapors, or dust are present.
01/ Encrypted Mesh Design
The encrypted mesh protective cover effectively prevents foreign objects from entering and ensures personal safety. The unique quick-release screw design on the edge allows for easy installation and removal without complex tools, greatly simplifying daily cleaning and maintenance. While providing strong protection, it also balances ease of use with safety and reliability. |
|
|
02/ High-Strength Aluminum Alloy Blades
The fan blades are crafted from aircraft-grade, high-strength aluminum alloy and are precisely dynamically balanced. This not only ensures high airflow and efficiency, but also significantly reduces noise and vibration during operation, delivering a quiet and stable operation experience and extending the lifespan of the device. |
03/ Aluminum Alloy Die-Cast Body
The housing is constructed from a one-piece die-cast aluminum alloy, offering a sturdy structure and excellent heat dissipation. This product is rigorously certified to Ex d IIc T4 Gb explosion-proof rating and features flexible speed adjustment, making it safe for use in Zone 1 and Zone 2 hazardous areas with Class IIA and IIB explosive atmospheres. It supports stepless or variable speed regulation, allowing precise control of airflow based on actual needs. |
|
04/ Four-Corner Reinforced Support Structure
The unique four-corner reinforced support bracket design features a scientifically designed structure, rock-solid operation, and extremely high installation stability and vibration resistance. This design effectively absorbs various stresses during operation, ensuring the fan remains stable and quiet even at high speeds, eliminating safety hazards caused by shaking. |
|
|

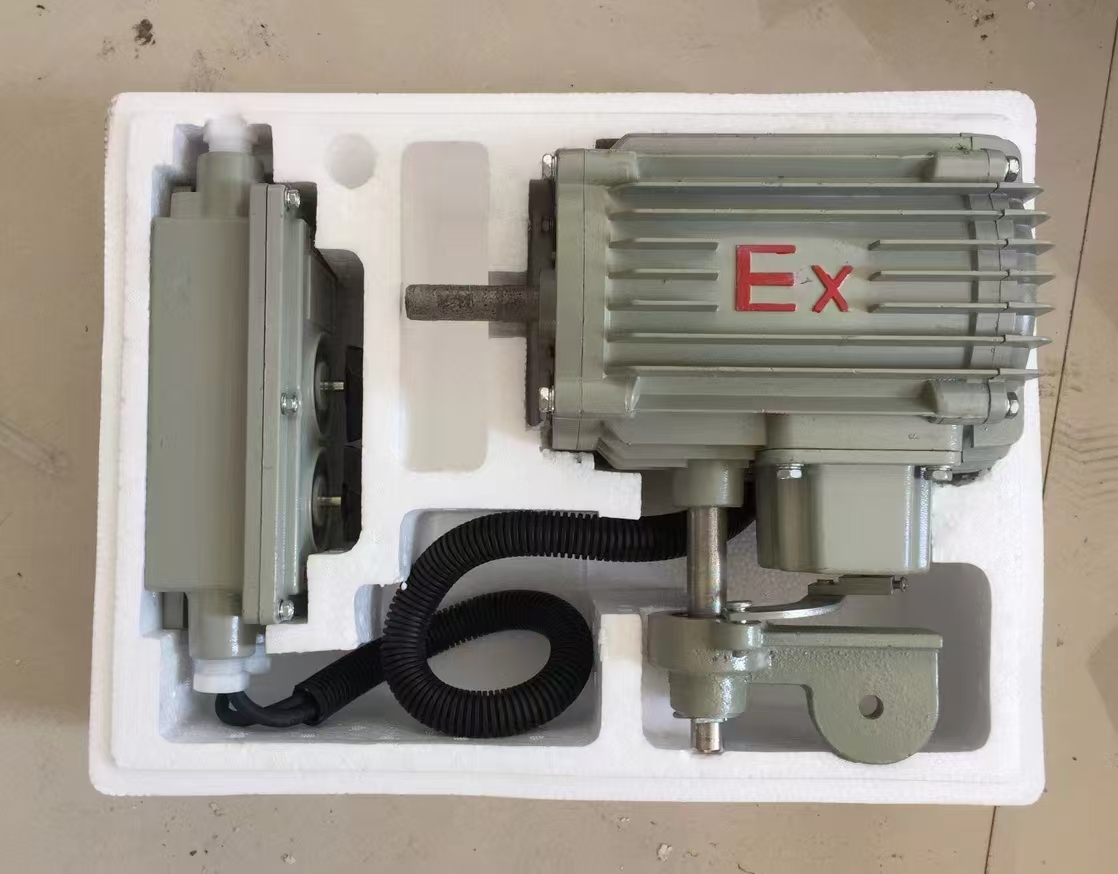

05/ Core Pure Copper Motor
The core pure copper motor provides wide-range explosion-proof compatibility. The power core utilizes a high-efficiency pure copper coil motor, characterized by low temperature rise, long life, and strong power. Its excellent explosion-proof performance makes it widely suitable for hazardous locations with Class IIA and IIB explosive gases, such as petroleum refining, chemical production, manufacturing, pharmaceutical processing, gas stations, and hazardous materials warehouses, making it a reliable choice for ensuring safe production. |
Front View
Side View
Installation View
Product Features
- Explosion-proof ceiling fan consists of Ex-motor, blades, and cylinder components
- Air duct constructed from quality steel plate welding with aluminum alloy cast blades featuring high-voltage static plastic-sprayed surface
- Aesthetic appearance with integrated one-body assembly frame, safety features, damping device, and low operating noise
- Conduit wiring system for secure electrical connections
Applications & Installation

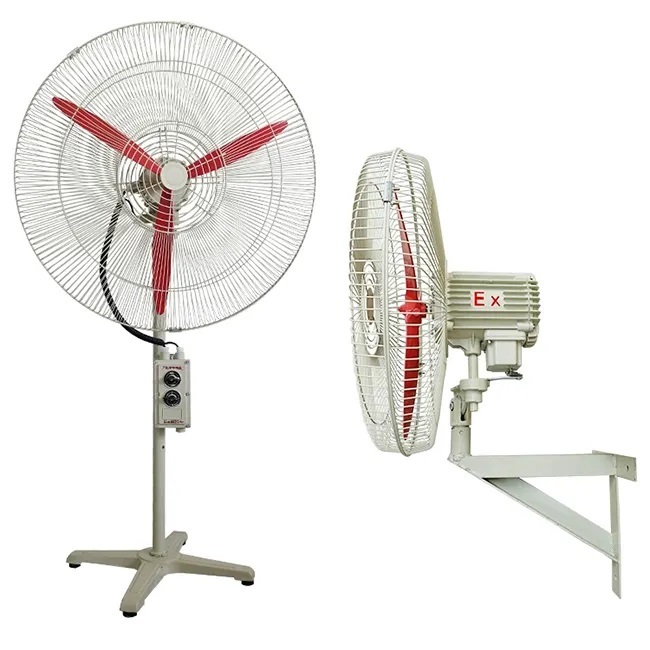

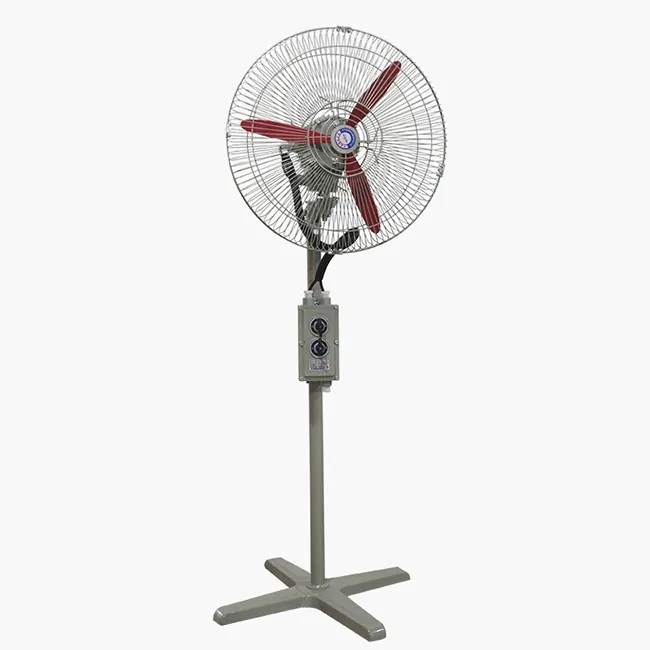

- Easy installation with floor-standing and wall-mounted options
- Equipped with explosion-proof copper motor (Ex d IIC T4 Gb rating) and IP54 waterproof/dustproof protection for use in flammable, explosive, and dusty environments in Zones 1&2, 21&22
- Premium motor construction using international high-purity copper wire with die-cast aluminum fan blades and IP66 explosion-proof switch
Technical Specifications
- Implementing Standards: GB3836.1-2000, GB3836.2-2000, IEC60079
- Explosion-proof Mark: Exd IICT4
- Rotation Speed: 1450 r/min
- Inlet Specification: G3/4
- Cable Specification: 9mm~14mm
Frequently Asked Questions
How can we guarantee quality?
Always a pre-production sample before mass production. Always final inspection before shipment.
Do you have any MOQ limit for light order?
MOQ, 1pc for sample checking is available.
Can you accept putting my logo on light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW.
Accepted Payment Currency: USD, GBP, CNY.
Accepted Payment Type: T/T, L/C.
Language Spoken: English, Chinese
Warranty
Our products are produced under strict quality control with a defective rate less than 0.2%. During the guarantee period, we will send new lights with new orders for small quantities. All products are tested before shipment and packaged properly. For defective batch products, please test before assembly and inform us within 3 days of receipt for replacement confirmation.
