Side Wall Explosion Proof Fan Air Flow Exhaust Fan 110V/220V/380V

2
MOQ
Side Wall Explosion Proof Fan Air Flow Exhaust Fan 110V/220V/380V
Features Gallery Product Description Chat Now
Features
Specifications
Name: Explosion Proof Ventilation Axial Fan
Type: Exhaust And Suction(optional)Type
Rated Voltage: 110V/220V/380V
Ex Mark: Ex De IIB T6 Gb
Protection: IP55
Entries: G 3/4"
Material: Thickened Iron Sheet
Air Volume: 2000-9500m³/h
Highlight:

explosion proof exhaust fan 380V

,

side wall explosion proof fan

,

air flow exhaust fan 220V
Basic Infomation
Place of Origin: China
Model Number: CBAG
Payment & Shipping Terms
Packaging Details: Cartons or Pallets
Delivery Time: 7 working days
Payment Terms: L/C,T/T,Western Union
Product Description

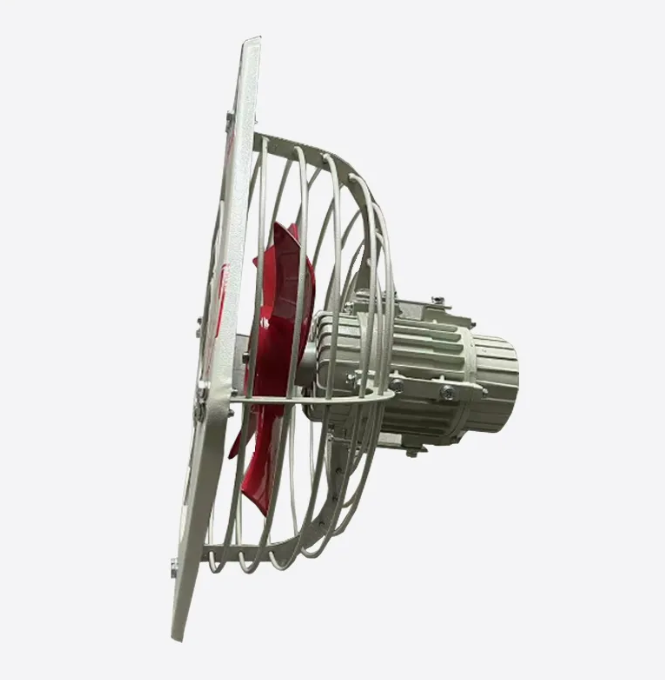

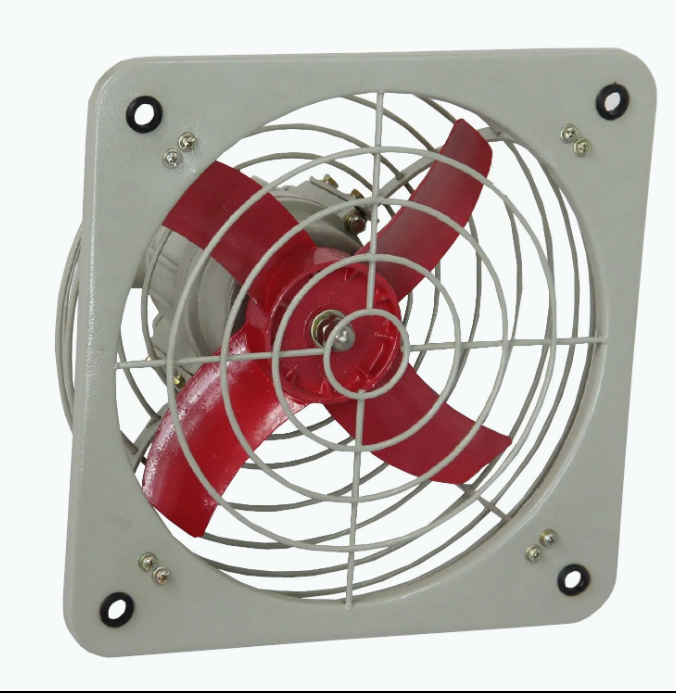

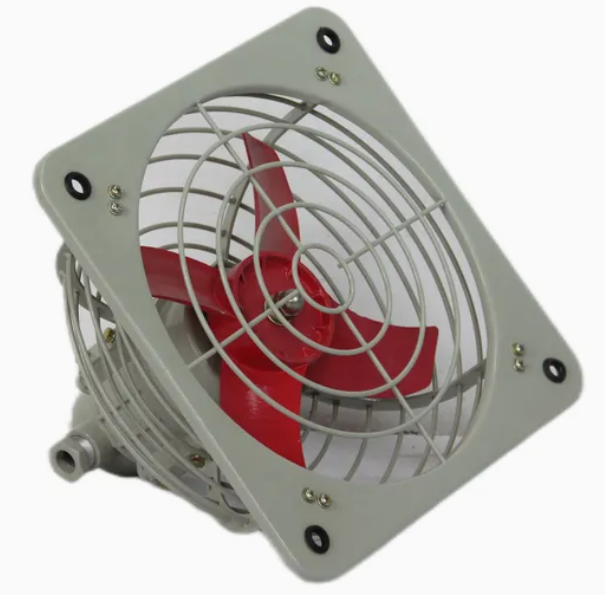

Side Wall Explosion Proof Air Flow Exhaust Fan Explosion Proof Fan
Product Overview

Side Wall Explosion Proof Air Flow Exhaust Fan designed for hazardous environments requiring certified explosion-proof ventilation solutions.

Key Features
  • Complete assembly includes Ex-motor, blades, and cylinder components
  • Air duct constructed from quality welded steel plate with aluminum alloy blades featuring high-voltage static plastic-sprayed surface
  • Aesthetic integrated one-body frame design with damping device for low operating noise
  • Conduit wiring system for secure electrical connections
Applications & Specifications
  • Easy installation with customizable colors and LOGO options
  • Explosion-proof motor rated Ex d IIB T4 Gb with IP65 waterproof and dustproof protection
  • Suitable for Zone 1&2 and Zone 21&22 flammable and explosive atmospheres
  • Premium construction materials:
    • Housing: Copper-free aluminium (AlSi12) with epoxy powder coating (RAL7035)
    • Exterior: Stainless steel
    • Globe: Tempered glass
    • Gasket: Silicon rubber
  • Customizable blade configuration (3 or 4 blades available)
Technical Parameters
Implementing Standards GB3836.1-2000, GB3836.2-2000, IEC60079
Explosion-proof Mark Exd IIB T4
Rotation Speed 1450 r/min
Inlet Specification G3/4
Cable Specification 9mm~14mm
Type CBAG-300 CBAG-400 CBAG-500 CBAG-600
Power(W) 120 180 250 750
Louver grolle 40 52 65 78
Air vilume(m³/h) 2000 2400 4900 9500
Rotating Speed (r/min) 1450 1450 1450 1450
Blade diameter(mm) 300 400 500 600
Tag:

explosion proof axial fan

Explosion Proof Ventilation Fan

Explosion Proof Vent Fan
