Industrial Explosion Proof Oscillating Fan with Adjustable Oscillation
The product has the advantages of satisfactory explosion-proof performance, reasonable structure, stable operation, convenient use, and attractive appearance. With impellers made of high-strength aluminum alloy, it is applicable in the factory with explosive gas mixtures formed by flammable gases of IIA and IIB grades with the temperature group ranging from T1 to T4 and for preventing explosion and cooling in places that are divided into Zones 1 and Zone 2, such as workshops, warehouses, offices, and gas stations in chemical, machinery, pharmaceutical, metallurgical and other industries.
Product Specifications
| MODEL |
Blade diameter(mm) |
Power(kw) |
Speed(r/min) |
Air volume(m/h) |
| FB-500(L) |
500 |
0.37 |
1450 |
6600 |
| FB-600(L) |
600 |
0.55 |
1450 |
9600 |
| FB-750(L) |
750 |
0.75 |
1450 |
18000 |
WIND LEAF MATERIAL: ALUMINUM ALLOY
NOISE: 50-60dB
BEARING TYPE: BALL
VOLTAGE: 220/380V
CERTIFICATION TYPE: CQC
CEILING MOUNTING: SINGLE SCREW FIXING
TYPE: AC FLOOR SHAKING FAN
ENERGY EFFICIENCY LEVEL: LEVEL 3
MOTOR: COPPER MOTOR
AIR OUTLET DIRECTION: NORMAL WIND
EX MARK: EX D IIC T4 GB
FAN STYLE: COLUMN TYPE
BLADE ANGLE: 30°
NUM OF BLADES: 3
Applications
- Gas Station
- Factory And Industry
- Dust Explosion Area
- Equipment Depot
- Metallurgical Industry
- Workshop Warehouse
- Machining
- Filling Station
- Explosive Workshop etc.
Product Description
Explosion-proof oscillating fans are specialized industrial fans designed for use in flammable and explosive environments.
They combine the automatic swinging airflow of conventional oscillating fans with explosion-proof safety features.
Their core purpose is to provide safe and efficient ventilation and cooling in areas where flammable gases, vapors, or dust are present.
Big Faces blow
The air volume is up to 18000m3/h
It is equivalent to 10 times the air volume of an ordinary fan
The encrypted mesh protective cover effectively prevents foreign objects from entering and ensures personal safety. The unique quick-release screw design on the edge allows for easy installation and removal without complex tools, greatly simplifying daily cleaning and maintenance. While providing strong protection, it also balances ease of use with safety and reliability. |
|
|
Long the wind form
The wind blows at a distance of 6 meters
Excellent wind speed and distance Get all the air circulating in the room
|
Product Features
- Explosion-proof ceiling fan consists of Ex-motor, blades, and cylinder components
- Air duct constructed from quality steel plate welding with aluminum alloy cast blades featuring high-voltage static plastic-sprayed surface
- Aesthetic appearance with integrated one-body assembly frame, safety features, damping device, and low operating noise
- Conduit wiring system for secure electrical connections
Applications & Installation

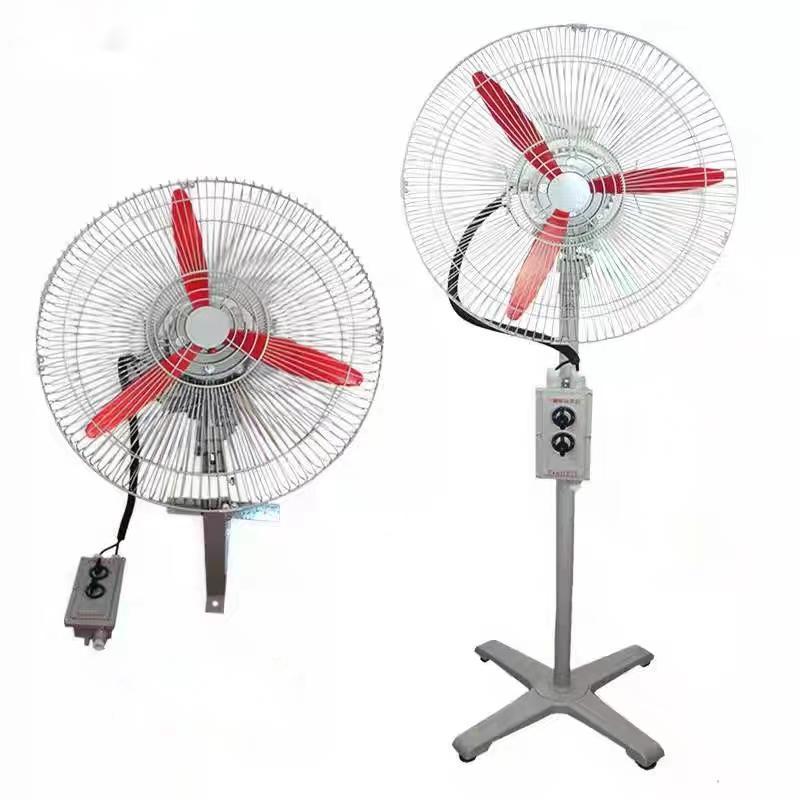

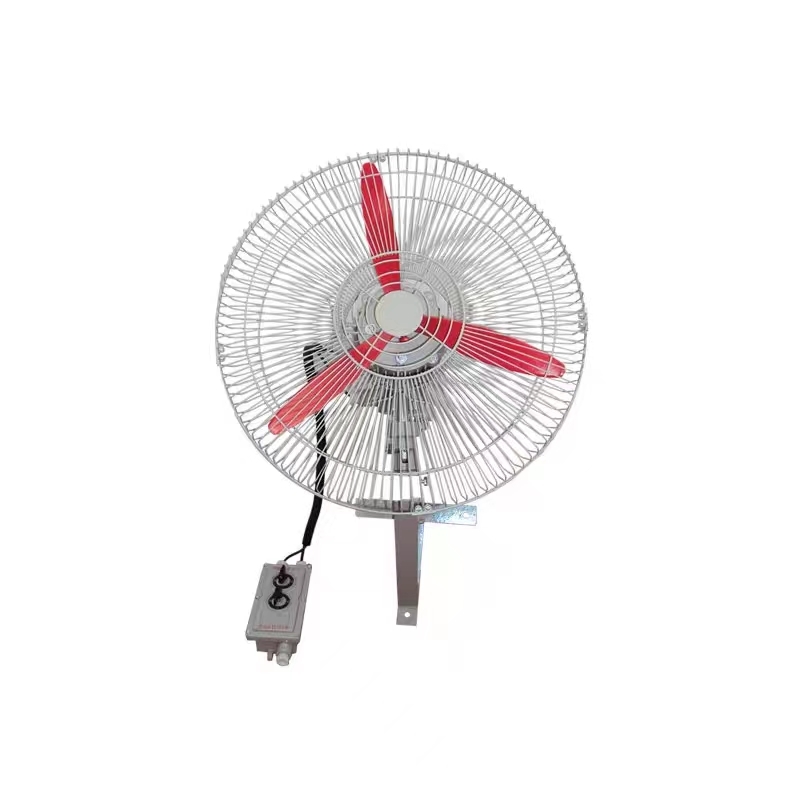

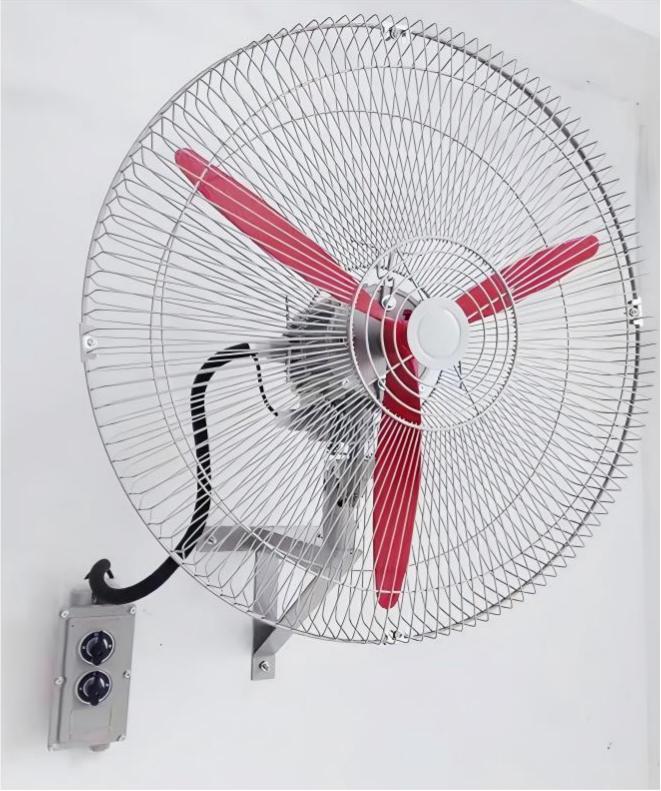

- Easy installation with floor-standing and wall-mounted options
- Equipped with explosion-proof copper motor (Ex d IIC T4 Gb rating) and IP54 waterproof/dustproof protection for use in flammable, explosive, and dusty environments in Zones 1&2, 21&22
- Premium motor construction using international high-purity copper wire with die-cast aluminum fan blades and IP66 explosion-proof switch
Frequently Asked Questions
Q1: What makes an explosion-proof oscillating fan different from a standard industrial fan?
A: The primary difference lies in safety design and spark prevention. Standard fans can generate electrical sparks, friction heat, or static electricity, which can ignite flammable gases, vapors, or dust in hazardous environments. An explosion-proof oscillating fan is engineered with spark-resistant aluminum or copper blades, an intrinsically safe or explosion-proof motor (such as ATEX or IECEx certified), and static-dissipative components to prevent any ignition source.
Q2: What hazardous zones and certifications are required for explosion-proof oscillating fans?
A: Depending on your region and facility type, these fans typically require internationally recognized safety certifications:
-
ATEX / IECEx: Commonly required in Europe and internationally for Zone 1 and Zone 2 (Gas) or Zone 21 and Zone 22 (Dust).
-
UL / CSA / Class & Division System: Standard for North America (e.g., Class I, Division 1 or Division 2 for hazardous locations).
Always ensure the fan’s safety rating matches the specific Zone, Gas Group (e.g., IIA, IIB, IIC), and Temperature Class (T-code) of your facility.
Q3: Where are explosion-proof oscillating fans commonly used?
A: These specialized fans are essential for workplace safety and air circulation in industries handling hazardous or volatile materials, including:
-
Oil refineries, petrochemical plants, and offshore platforms
-
Chemical processing and storage facilities
-
Commercial spray paint booths and solvent storage areas
-
Grain handling, flour mills, and woodworking shops (combustible dust environments)
-
Pharmaceutical manufacturing plants
Q4: How do I select the right size and specifications for an explosion-proof fan?
A: To choose the correct fan for your facility, consider the following key parameters:
-
Blade Diameter & Airflow (CFM/m³/h): Match the fan size (e.g., 20", 24", 30") and airflow capacity to your space volume and ventilation requirements.
-

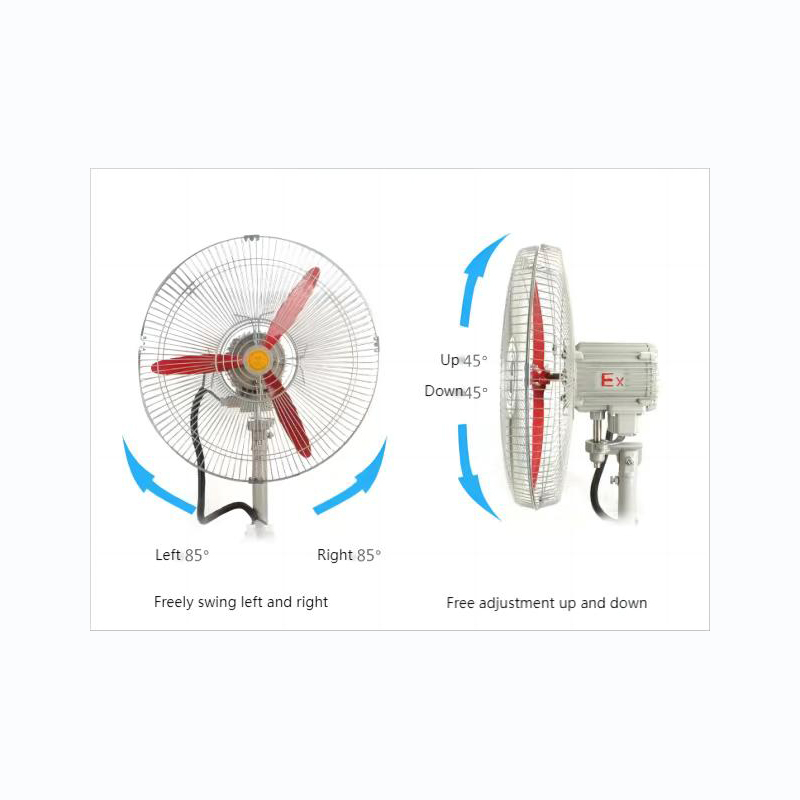

Oscillation Angle & Coverage: Ensure wide-angle oscillation effectively covers your targeted hazardous area.
-
Mounting Type: Choose between pedestal (floor-standing), wall-mounted, or portable models based on layout and space availability.
-
Voltage & Frequency: Verify electrical compatibility (e.g., 110V/220V/380V at 50Hz or 60Hz) with your local grid setup.
Warranty
Our products are produced under strict quality control with a defective rate less than 0.2%. During the guarantee period, we will send new lights with new orders for small quantities. All products are tested before shipment and packaged properly. For defective batch products, please test before assembly and inform us within 3 days of receipt for replacement confirmation.
