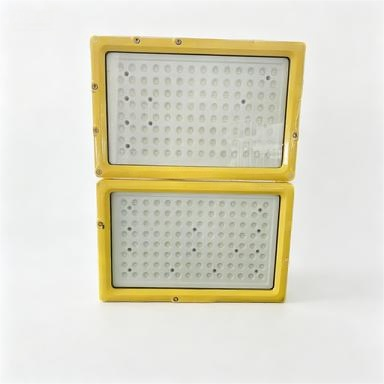

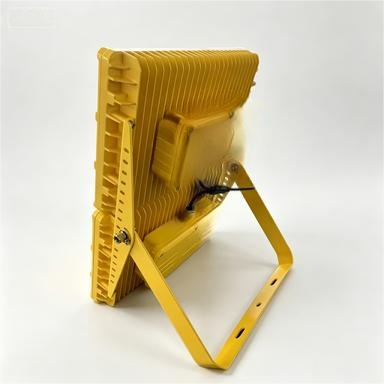

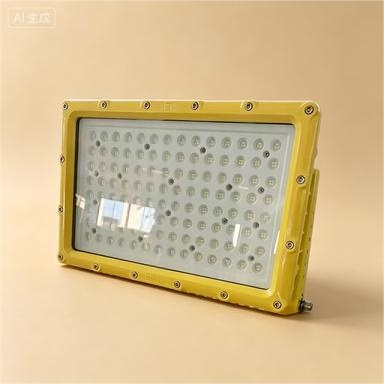

Explosion-proof LED Floodlight for Hazardous Areas with Durable Construction

Explosion-proof LED Floodlight for Hazardous Areas with Durable Construction
Features Gallery Product Description Chat Now
Features
Specifications
Housing Material: Aluminum Alloy
Protection Level: IP66
Explosion Proof: Yes
Power Range: 30W-400W
Color Temperature: 3000K-6500K
Luminous Flux: Up To 50000lm
Waterproof: IP65
Rechage Time: 8h
Ex Marking: Exd II CT6GB
Lumen: 4680lm
Driver: 3900-7800lm
Ambient Temperature: -20°C ~ +45°C
Lens Angle: 60,90,120,
Light Source: LED
Overall Dimensions: 730*240
Cct: 5000-6500K
Input Voltage: 200VAC-240VAC
Lumen Output: 4680lm
Incoming Cable: φ7-12mm
Operating Voltage: 110-277V AC
Work Humidity: 10%-90%
Basic Infomation
Place of Origin: China
Brand Name: Cherubim
Certification: ATEX
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 5-9days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50000set/days
Product Description
  • Can be used in:
  • Zone 1 and Zone 2
  • Zone 21 and Zone 22
  • Class I, Zone 1 and Zone 2
  • Class I, Division 1, Groups B, C, D
  • Applicable lamp and power (max. 240W):
    LED: 50~100W, 120W, 150W, 200W, 240W
  • Isolated LED lamp compartment, CC-CV (constant current - constant voltage) power controller compartment and terminal compartment; wind-convection heat dissipation structure.
  • Standard product features floodlight effect; lenses of 60° and 90° are available on request to achieve spotlight effect.

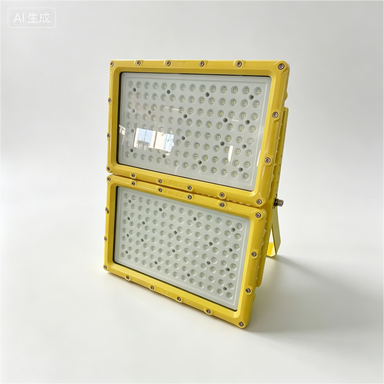

  • Lighting fixtures with power above 240W adopt an integrated two-lamp design.
  • Low maintenance costs due to long service life (up to 100,000 operating hours)
Technical data
  • Enclosure: Copper-free Aluminium Alloy, powder coated surface, yellow
  • Glass cover: Toughened glass, stands 4J impact
  • LED driver: Wide voltage input, CC-CV (constant current - constant voltage) output, power factor >0.92, with function of distributed current, constant current, surge-proof and anti-electromagnetic interference, and protection against over current
  • Exposed fastener: Stainless steel
Lamp
  • Lamp specification: LED module, Multiple LED
  • Lamp power (W): 50~100 W, 120W, 150W, 200W, 240W
  • Colour rendering index (Ra): >75
  • Colour temperature (CCT): 5700K
  • Rated voltage: 100~277V AC 50/60Hz
  • Earthing protection: M5 (internal & external earth bolts)
  • Degree of protection: IP66
  • Terminal: 3 x 1.5~4mm2 (L+N+PE)
  • Mounting: Bracket type, fixed type, street lamp
  • Cable entries: 2*G3/4
  • Cable outer dia: Φ9～14mm
