Features

Specifications

Motor Speed: 1400 RPM

Voltage Options: 220V, 380V, 415V

Airflow Capacity: 44,500 CFM

Material Options: Galvanized Steel Or Stainless Steel

Motor Power: 1/4 HP

Current Rating: 2.7 Amps

Basic Infomation

Place of Origin: China

Brand Name: cherubim

Certification: ATEX

Payment & Shipping Terms

Packaging Details: Wooden box

Delivery Time: 5-9days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000set/Month

Gallery

Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan

Product Description

Explosion Proof Exhaust Fan Hazardous Area Negative Pressure Ventilation FanExplosion Proof Exhaust Fan Hazardous Area Negative Pressure Ventilation FanExplosion Proof Exhaust Fan Hazardous Area Negative Pressure Ventilation Fan

Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan

Main feature:

The hot galvanized sheet adopts 275g/ galvanized layer, which does not rust.
2) 95% of the parts are produced by ourselves, reducing processing costs, sharing profits with customers, and ensuring quality worldwide
3) Complete CNC production line, 100% assembly accuracy, easy assembly, quality assurance.
4) Wall-mounted fan, installation and maintenance
Convenient 5) belt drive, large air volume
*. Material: high-quality nylon PA66
* Guide rod: 304 stainless steel, external use of special materials, high strength, no rust, reduce friction.
* Rivets: 304 stainless steel, wear-resistant, no rust

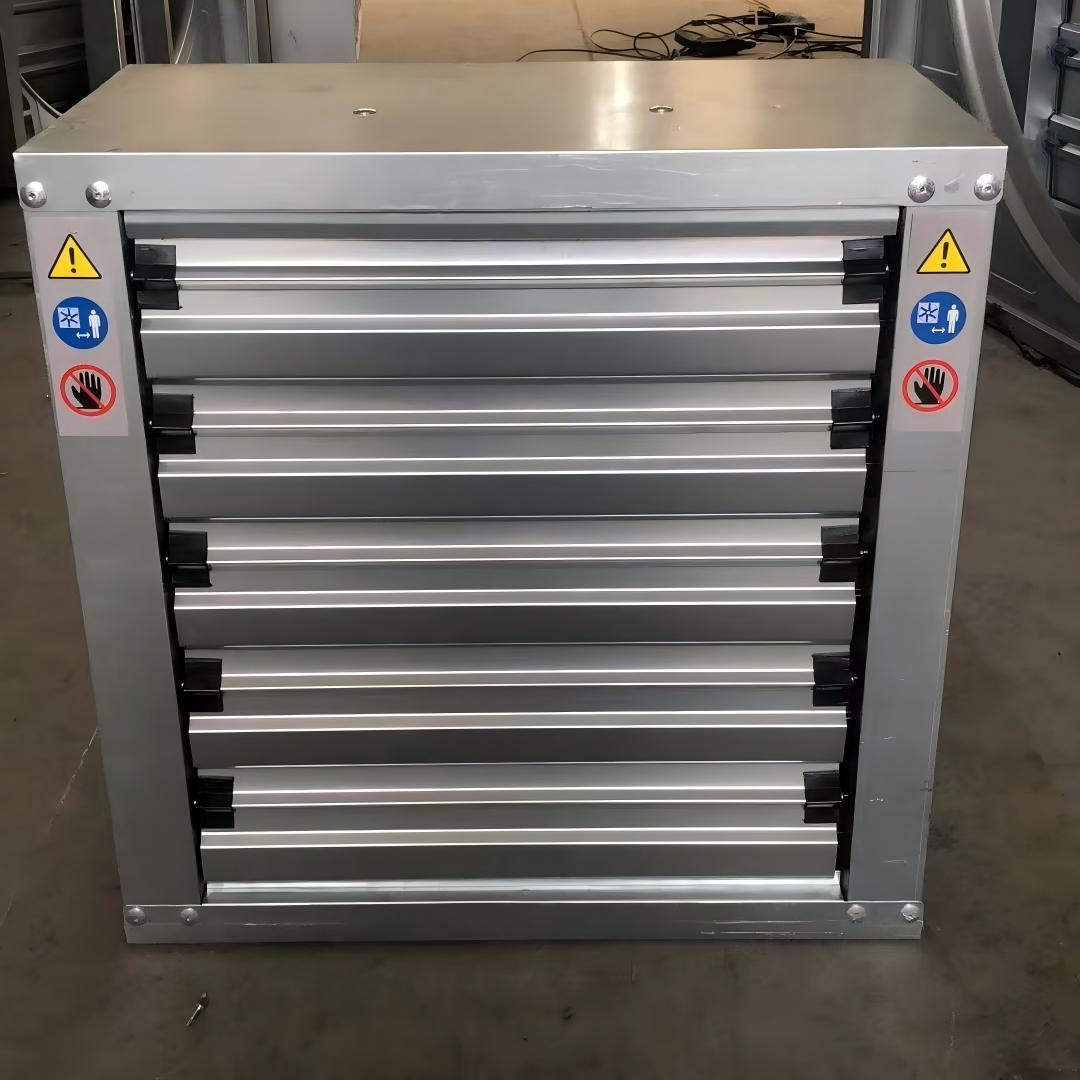

. Advantages:
1.No electric ventilation, pull ring auxiliary heavy hammer

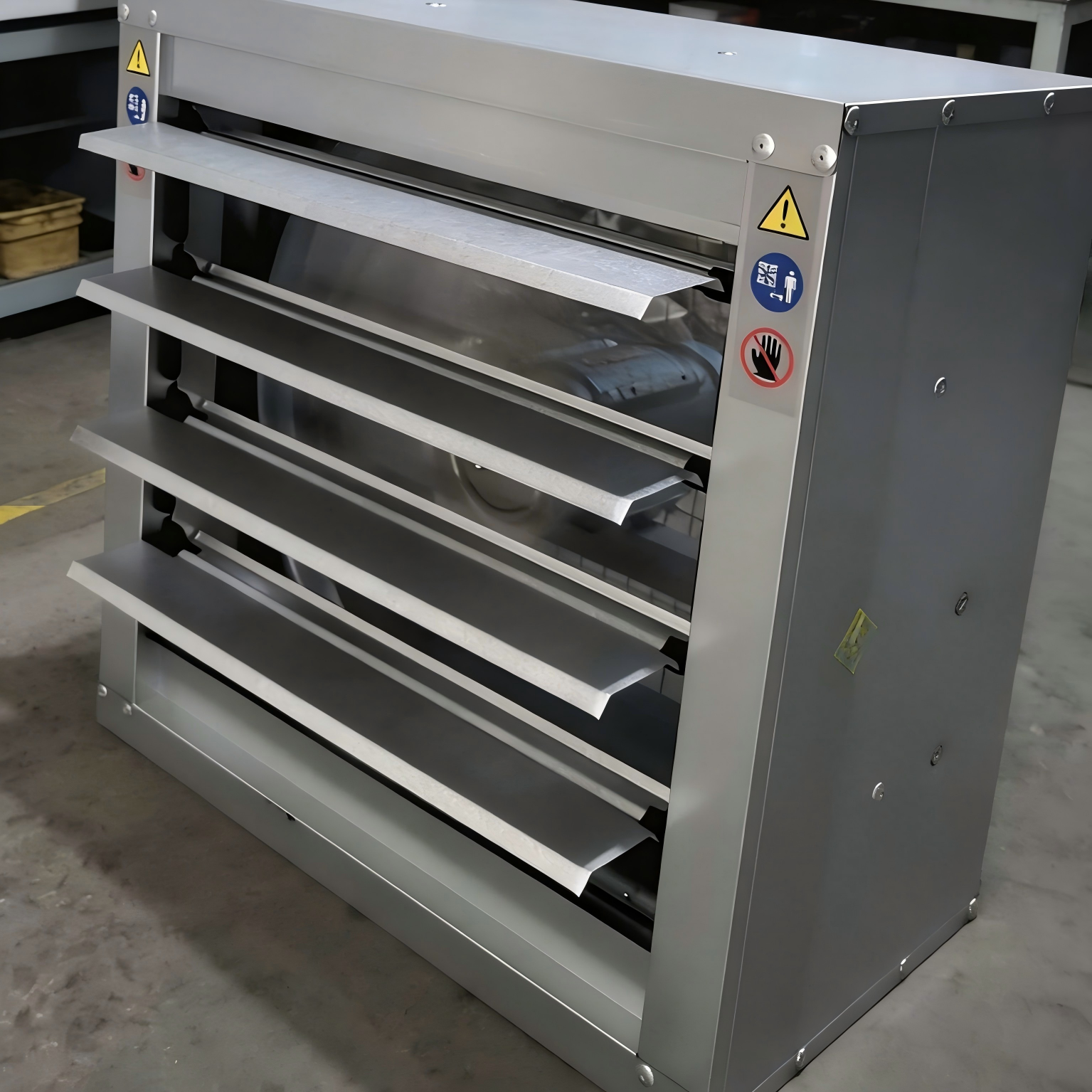

2.It can keep the blinds fully 90 degrees open to ensure the lowest air resistance and maximum air volume.

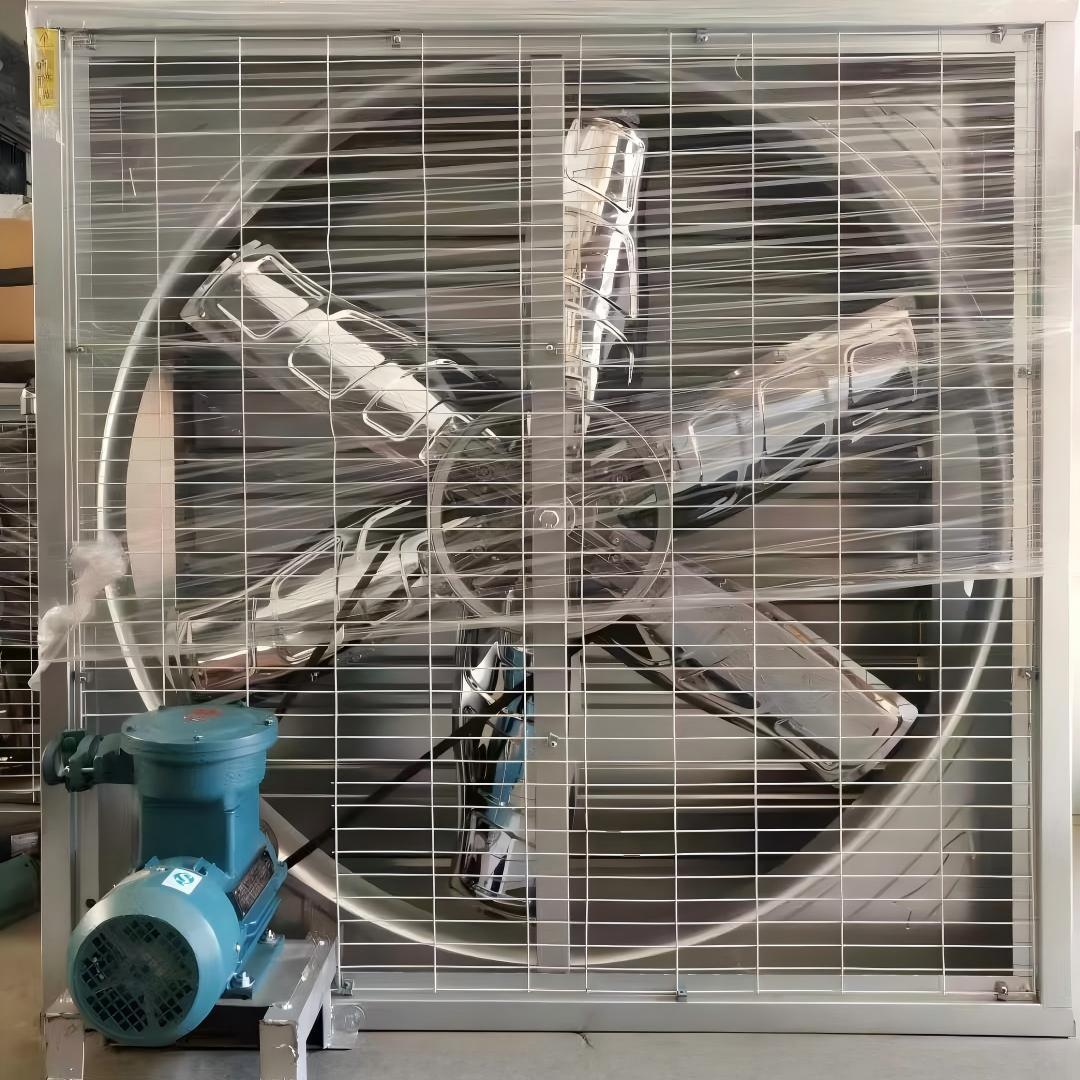

Blade:
* The blade is made of stainless steel stamping, no damage, no dust, beautiful and durable.
* The special blade shape design ensures large air volume, no deformation, no breakage, and the air volume remains unchanged throughout the whole process.
Fan pulley:
* The fan pulley is made of high strength aluminum-magnesium alloy die casting, completely lightening the blade impeller
The weight, high resistance
Corrosion
* The special three-edge pulley design eliminates internal stress and improves its own stiffness and stability without

Can be used inhazardous areas:

Zone 1 and Zone 2.

Can be used in explosive gas atmospheres of Category llA and llB where the temperature classification is T1 ~T4.

Product Specifications

Type	Size(mm)LWH	Diameter (mm)	Speed (r/min)	Air volume (m³/h)	Sound (dB)	Power (W)	Rated voltage (V)
BFC-400	400X400X350	320	1450	3500	65	0.25-4	380
BFC-500	500X500X350	420	1450	7000	56	0.25-4	380
BFC-600	600X600X350	560	960	10000	56	0.37-6	380
BFC-700	700X700X350	620	960	15000	60	0.37-6	380
BFC-800	800X800X400	630	427	19500	56	0.37	380
BFC-900	900X900X400	770	427	29500	56	0.37	380
BFC-1000	1000X1000X400	930	427	31500	58	0.55	380
BFC-1100	1100X1100X400	970	427	33000	61	0.75	380
BFC-1220	1220X1220X400	1100	427	37000	63	0.75	380
BFC-1380	1380X1380X400	1270	427	44500	65	1.10	380
BFC-1530	1530X1530X400	1430	427	54000	68	1.5	380

Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan

Frequently Asked Questions

Q1: What explosion proof certification is available?

A1: ATEX

Q2: What airflow capacities are available?

A2: Various capacities available - contact for specific requirements

Q3: Can the fan be customized?

A3: Yes

Q4: Is stainless steel available?

A4: Yes, Galvanized steel or stainless steel are available

Q5: Can the fan work in high temperature environments?

A5: Yes

Q6: What voltage options are available?

A6: 220V, 380V, 415V

Q7: What is the lead time?

A7: For customized products, the delivery time is determined based on specific parameters
