Wall Mounted Ex Proof Junction Box IP66 Weatherproof Zone 1 2 Certified

1
MOQ
US$3.00-15.00
Price
Wall Mounted Ex Proof Junction Box IP66 Weatherproof Zone 1 2 Certified
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Explosion Proof Junction Box
Material: Aluminum
IP Rating: IP65
Thread Size: G1/2", G3/4", G1", G1 1/4,G1
Ex-Mark: Iib, Iic
Voltage: 380 V 50/60 Hz
Fireproof Grade: Wf1
Color: Grey,White
Highlight:

Ex Proof Junction Box IP66

,

Weatherproof Ex Proof Junction Box

,

Wall Mounted Ex Proof Box
Basic Infomation
Place of Origin: China
Brand Name: Cherubim
Certification: ATEX
Model Number: YHXe
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 5-9 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50000set/Month
Product Description

Wall-Mounted Ex-Proof Junction Box | IP66 Weatherproof | Zone 1 & 2 Certified



Applications:
1. Aluminum alloy shell. Can be customized cast steel material, threaded sealing port. High explosion-proof performance.
2. Can be used in hazardous areas: Zone 1 and Zone 2, Zone 21 and Zone 22
3. It can be used in the explosive gas environment of Class IIA, IIB and IIC with temperature grades of T1-T6.
4. Widely used in petroleum, chemical, aerospace, militar and other fields.
5. Compliance with standards: G3B3836.1, GB3836.4, GB60079-11, IEC60079-0
6. Explosion-proof mark: Exd IIC Gb
7. Anti-corrosion grade: WF1
8. The product has won ROHS, CE, ATEX, IEC, ISO and other certificates, and the quality assurance certificate.

Features:

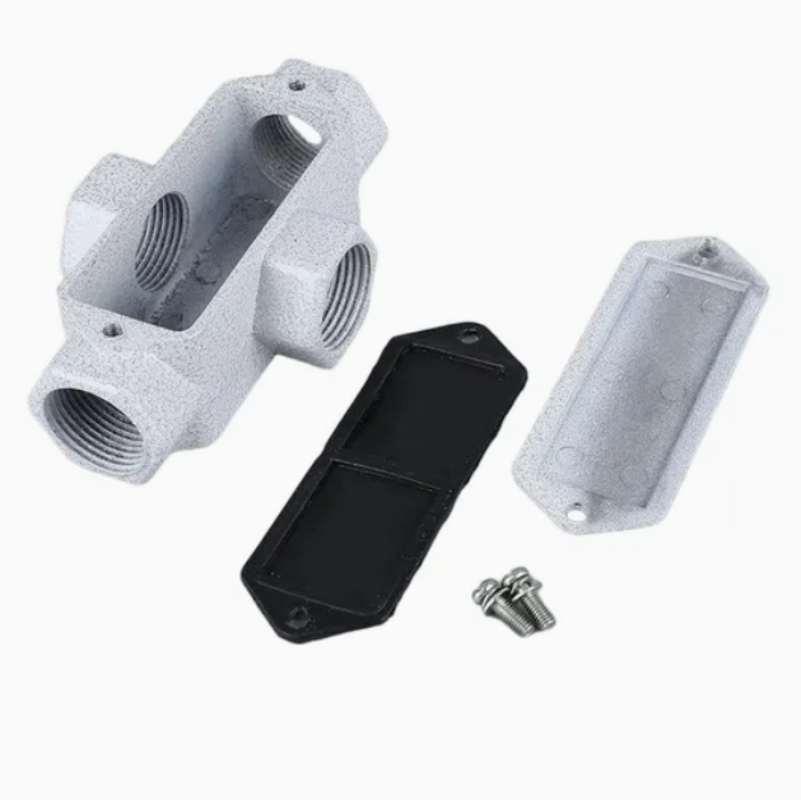

1. Aluminum alloy die-casting shell, high-speed shot peening treatment, surface high-voltage electrostatic spraying, corrosion resistance, anti-aging.
2. Stainless steel exposed fasteners, high corrosion resistance.
3. Steel pipe or cable wiring is acceptable

Technical Parameters:

Product Name Vapour Proof Junction Casing
Category Gas Zone 1,2; Dust Zone 21, 22
Enclosure Aluminum Stainless Steel 316L Carbon Steel
Rated Voltage Customer Settings
Size Customer Settings
Weight Customer Settings
Package Carton Box Packing
Protection Grade ⅡB ⅡC Class
Installation Method Wall-mounted
Weather Proof IP66
Product Description Hazardous Location Connection Box, Intrinsically Safe Junction Enclosure
Surface Treatment Electrostatic Spraying



Product Parameters:



Ordering Information
Models
Materal
Caliber size

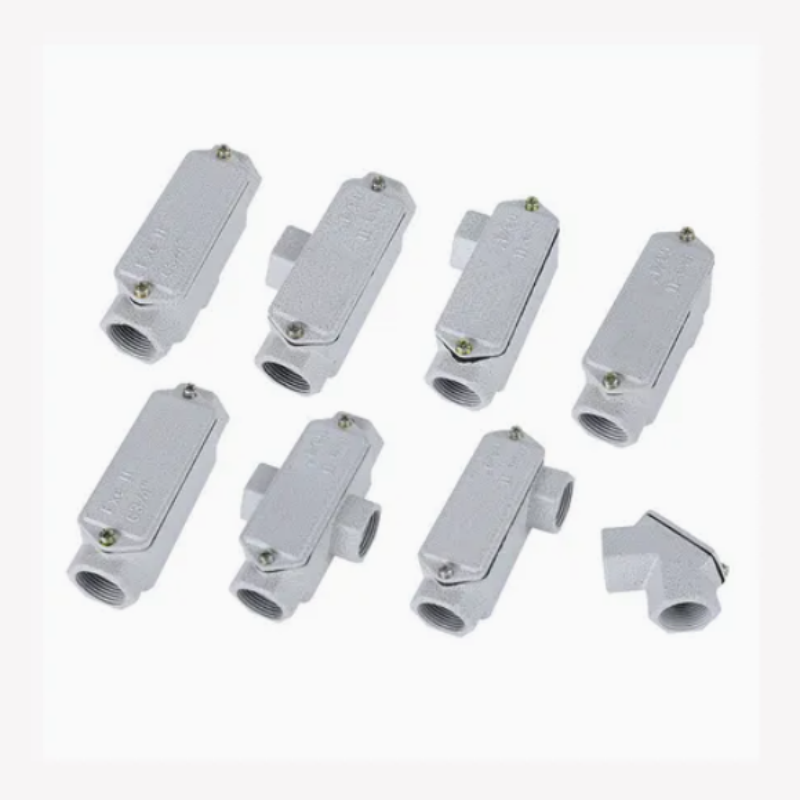

Number and direction of ports
YHXe-G1/2"


Die-cast aluminum material
1/2 inch
A: Through
B: Tee
C: Stone
D: Right pass
E: Left pass
F: Back cover bent through
G: Back cover tee
H: Right Angle Ingot
YHXe-G3/4"
3/4 inch
YHXe-G1"
1 inch
YHXe-G1 1/4"
1.2 inch
YHXe-G1 1/2"
1,5 inch
YHXe-G2"
2 inch
YHXe-II-G1/2"



Cast steel material
1/2 inch
A: Through B: Tee
C: Stone
D: Right pass
E: Left pass
F: Back cover bent through
G: Back cover tee
H: Right Angle Ingot
YHXe-II-G3/4"
3/4 inch
YHXe-II-G1"
1 inch
YHXe-II-G1 1/2"
1.2 inch
YHXe-II-G1 1/4"
1.5 inch
YHXe-II-G2"
2 inch
