Features

Specifications

Name: IP65 Explosion Proof Distribution Box Control Panel Corrosion Resistant

Material: Die Cast Aluminum

Feature: Corrosion Resistant

Protection Grade: IP54/65

Rated Current: 25A, 32A, 63A, 100A, 160A

Rated Voltage: AC 380V/220V

Ex Mark: Ex D Iib T4 GB/Ex Td A21 IP65 T130℃

Anticorrosion Grade: Wf1

Highlight:

explosion proof junction box

IP65 explosion proof control panel

corrosion resistant explosion proof distribution box

Basic Infomation

Place of Origin: China

Brand Name: Cherubim

Certification: ATEX

Model Number: AH

Payment & Shipping Terms

Packaging Details: Cartons or Pallets

Delivery Time: 7 working days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000/Month

Gallery

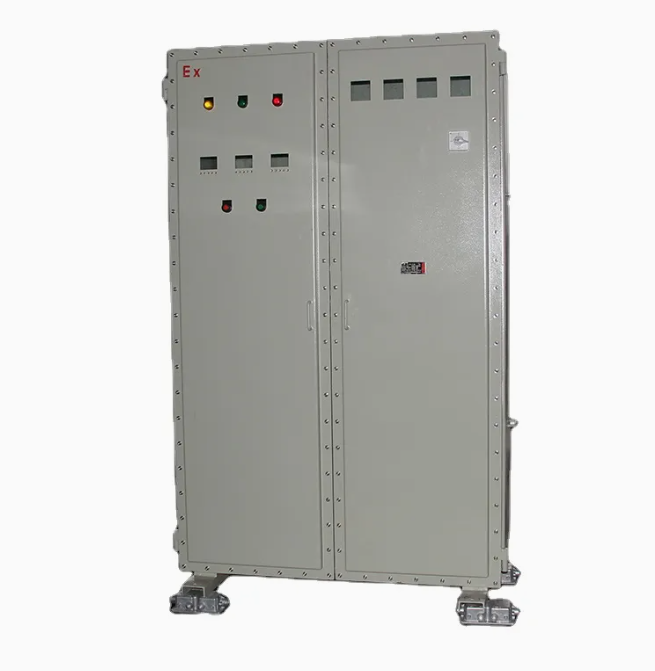

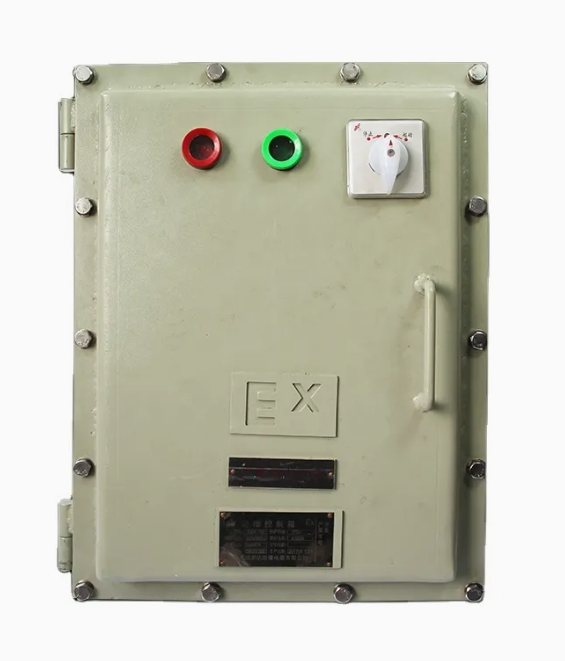

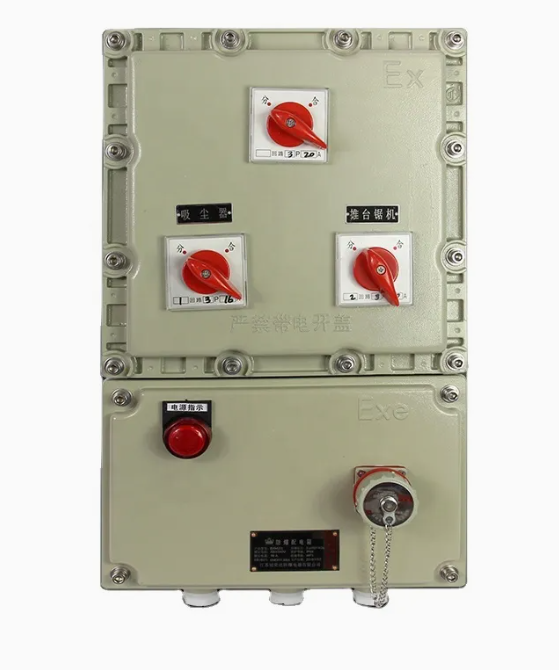

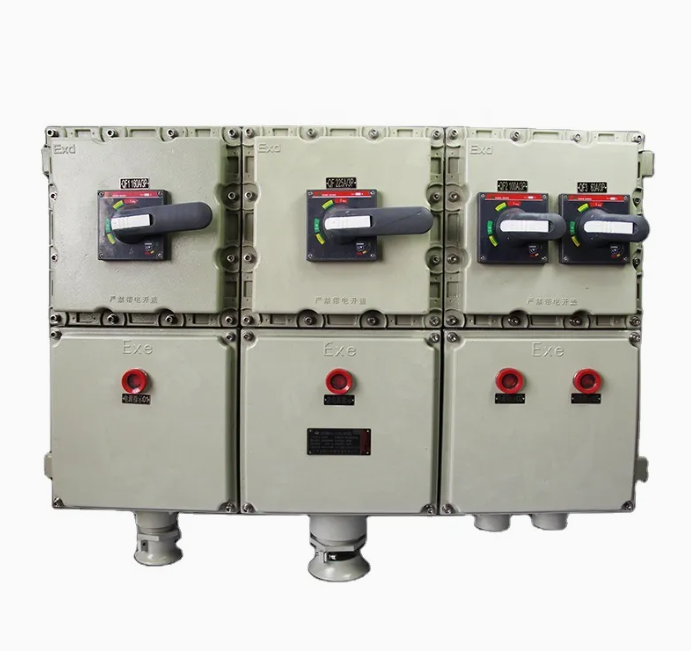

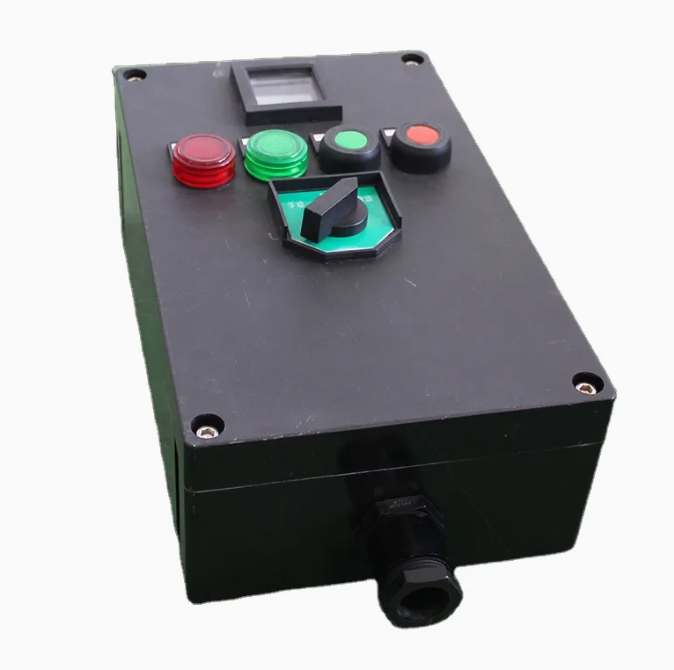

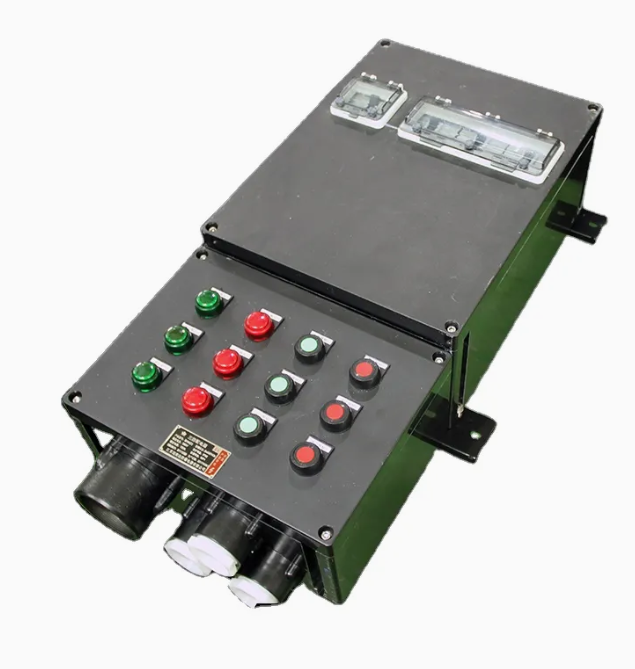

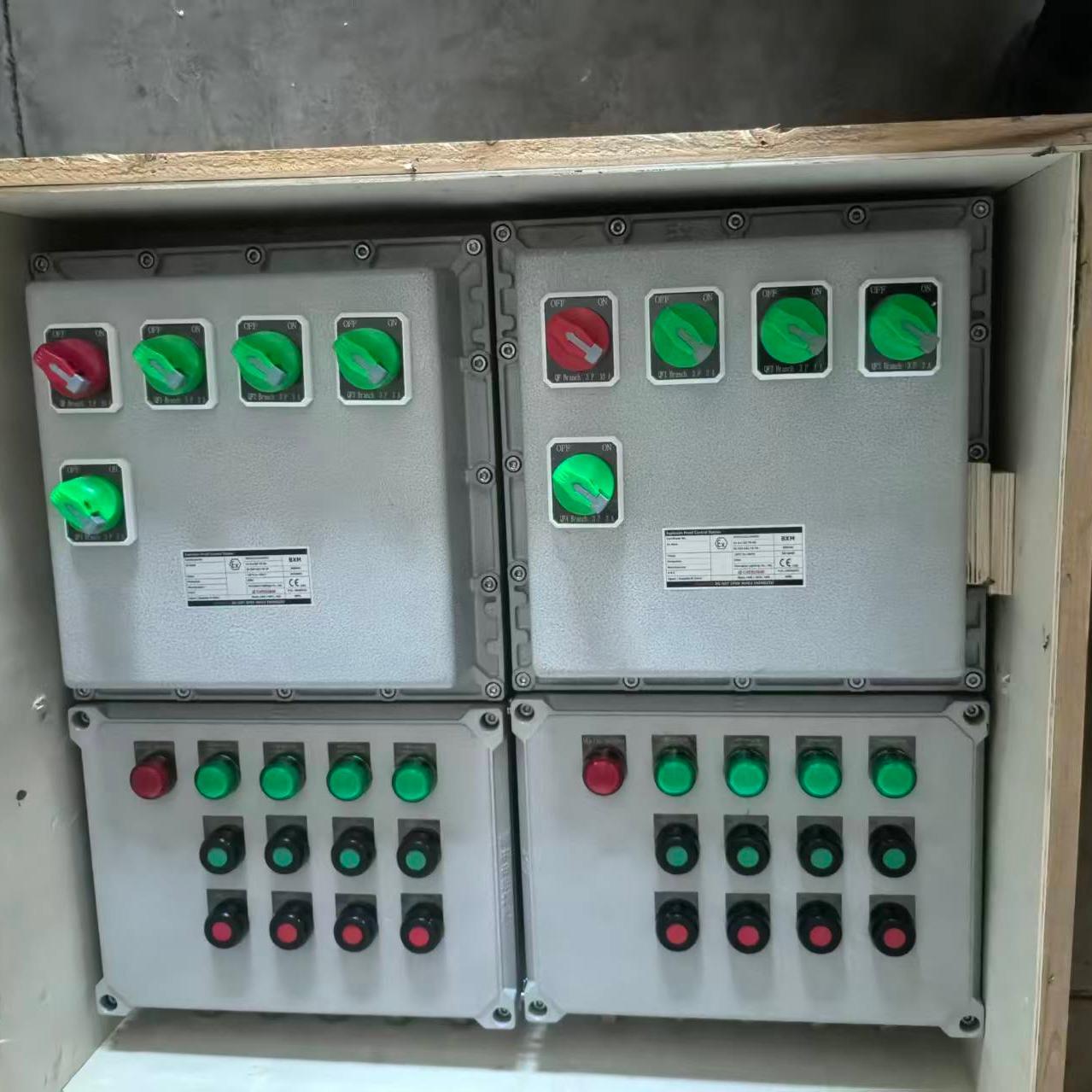

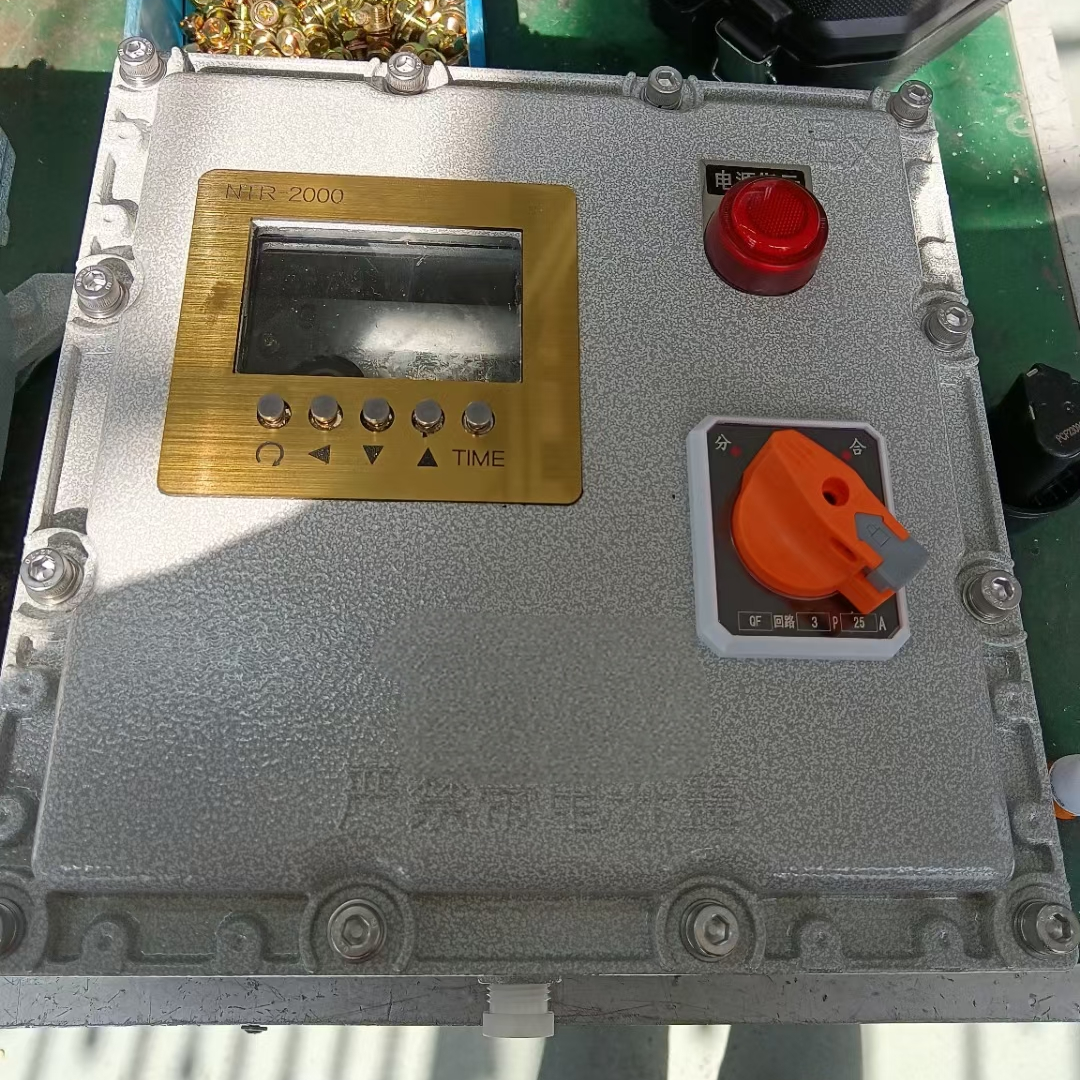

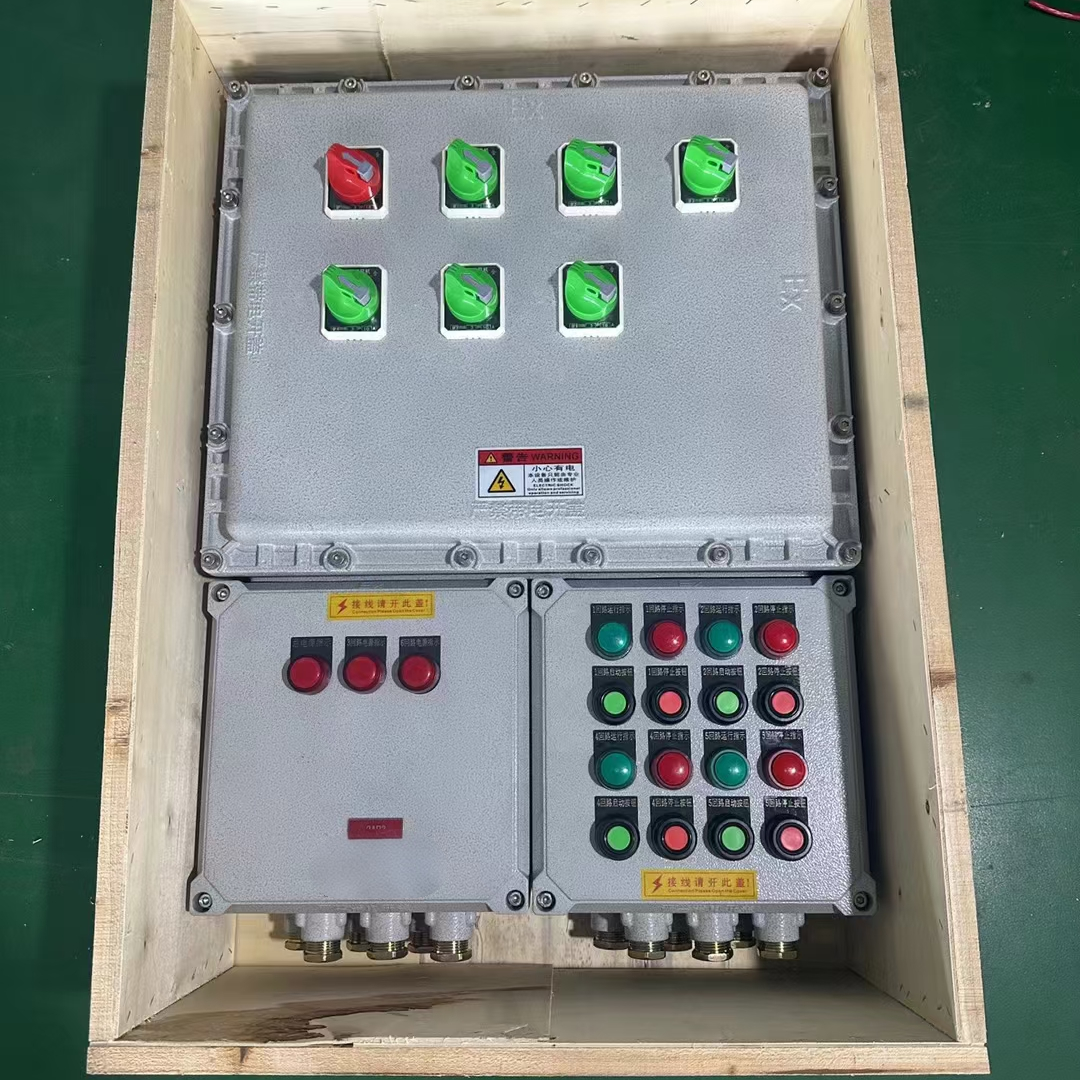

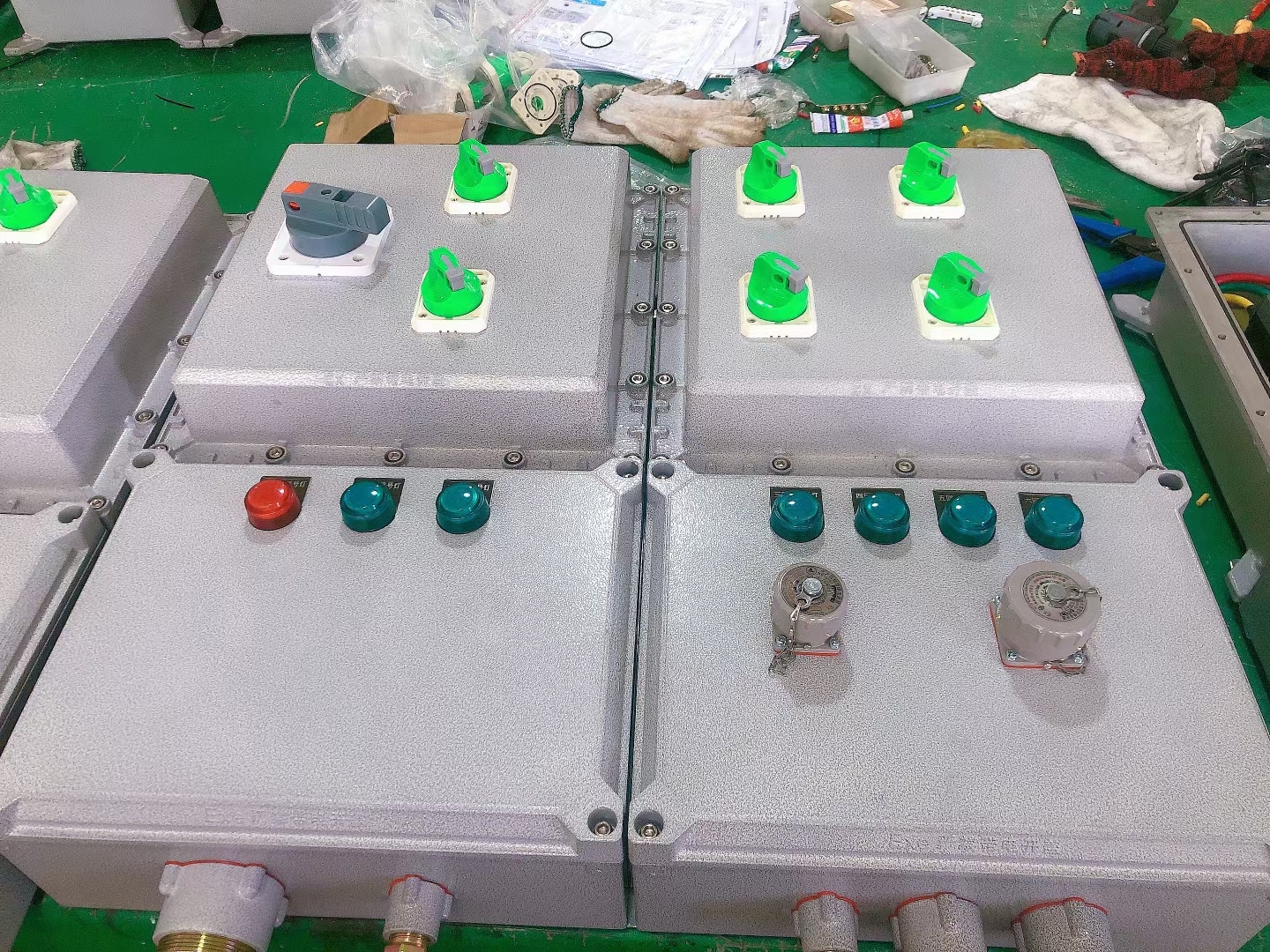

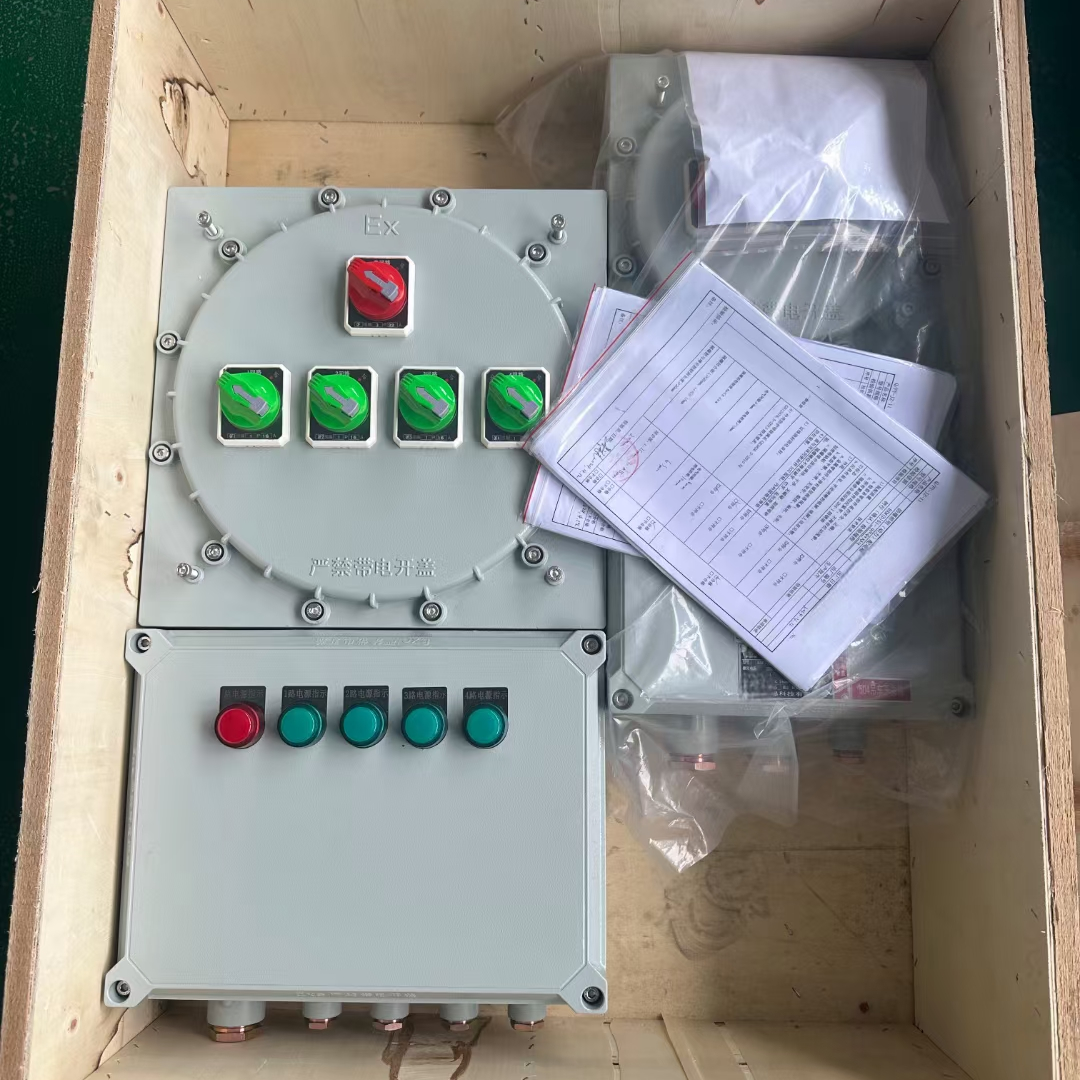

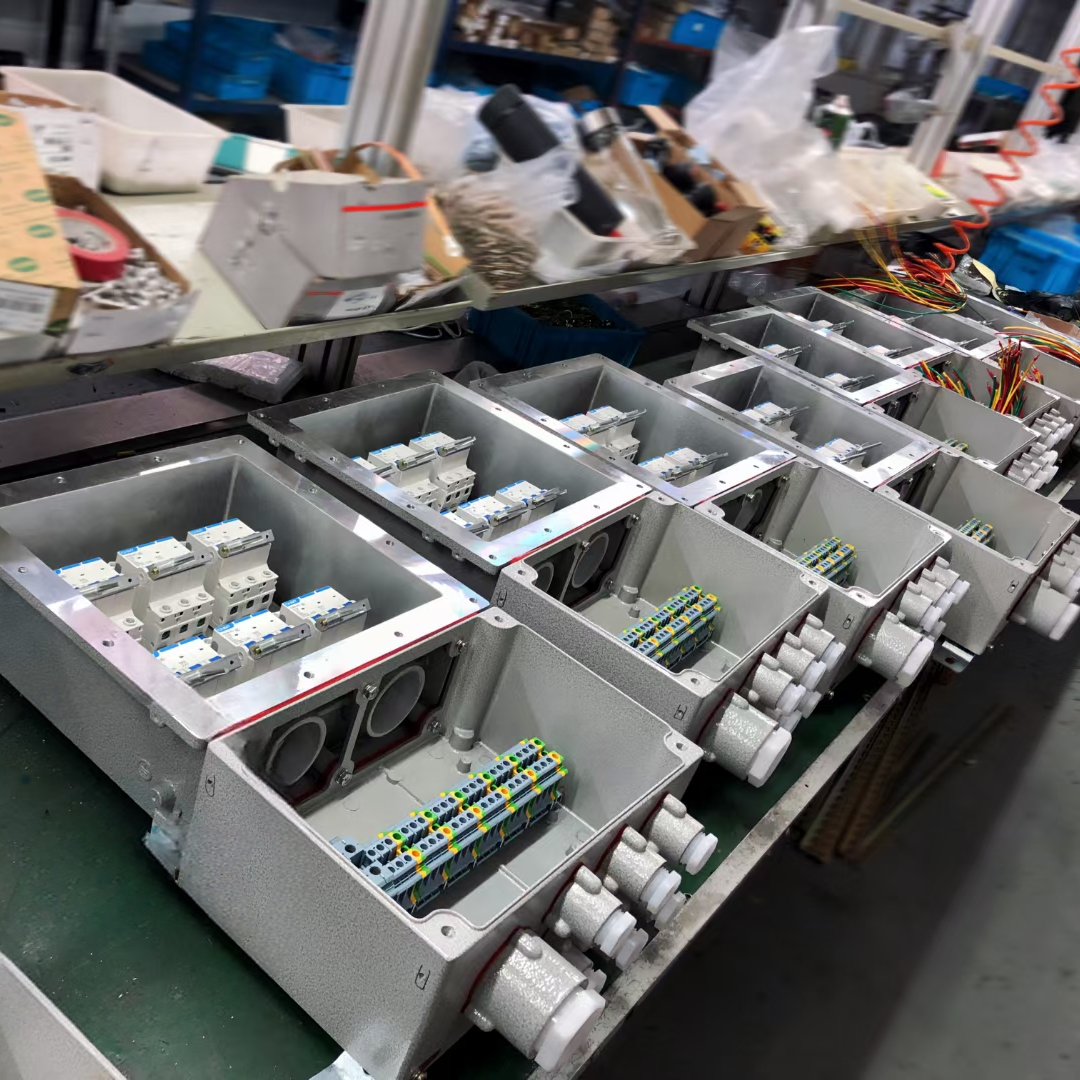

IP65 Explosion Proof Distribution Box Control Panel Corrosion Resistant

Product Description

Explosion Proof Junction Distribution Box Control Panel

1. The shell is made of aluminum alloy low pressure casting, and the surface of low carbon steel is sprayed with high-voltage electrostatic spraying Plastic, stainless steel surface wire drawing, corrosion resistance, anti-aging;
2. This series of products is of flameproof structure: integrated pure flameproof structure, A variety of specifications for users to choose;
3 The switch handle is usually made of PC material, which can also be made according to user requirements Metal material, main switch and sub switch operation panel can be determined according to color The switch handle can be configured with padlock to prevent misoperation;
4. Circuit breaker, AC contactor and thermal relay can be installed according to user requirements Electrical appliances, surge protector, universal change-over switch, fuse, mutual protection Electrical components such as inductor and ammeter;
5. Each circuit is equipped with power on signal indicator;
6. The sealing strip adopts the advanced technology of cast-in-place foaming one-time forming, with high Protection performance;
7. Vertical installation is equipped with corresponding mounting bracket, and outdoor use can be equipped with anti The material of rain cover or protective cabinet can be customized according to user requirements;
8. Steel pipe or cable wiring is acceptable.

Applicable Scope: Zone 1, Zone 2, Zone 21,Zone 22;IIA, IIB,IIC Explosive Gas Environments
Security Level: WF1*WF2,Ex db eb IIC T6 Gb,Ex tb IIIC T80ºC Db
Field of utilization:Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
Alias:
Function:Power Distribution Equipment In Hazardous Environments
Box Interface:5 Hole,6 Hole,7 Hole,8 Hole,9 Hole,10 Hole,11 Hole,12 Hole,13 Hole
Rated Current 1: 6A,10A,16A,20A,25A,32A,40A,50A,63A
Rated Current 2: 80A,100A,125A,160A,200A,225A,250A,315A,400A,500A,600A

FAQ:

We provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.

A: What certificates do you have?

Q: We have passed ATEX,

A: What place are your products used in?

Q: They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, gas station and other industries.

A: Can I have a sample order?

Q: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

A: Can youaccept customized?

Q: Yes. Please inform us and confirm the design firstly based on our sample.
