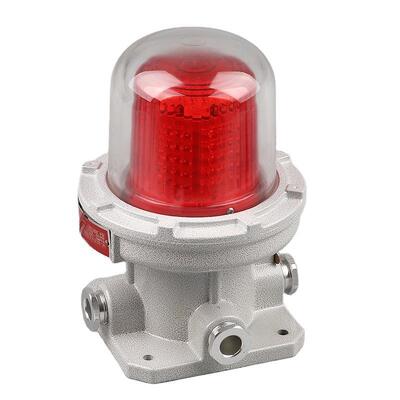

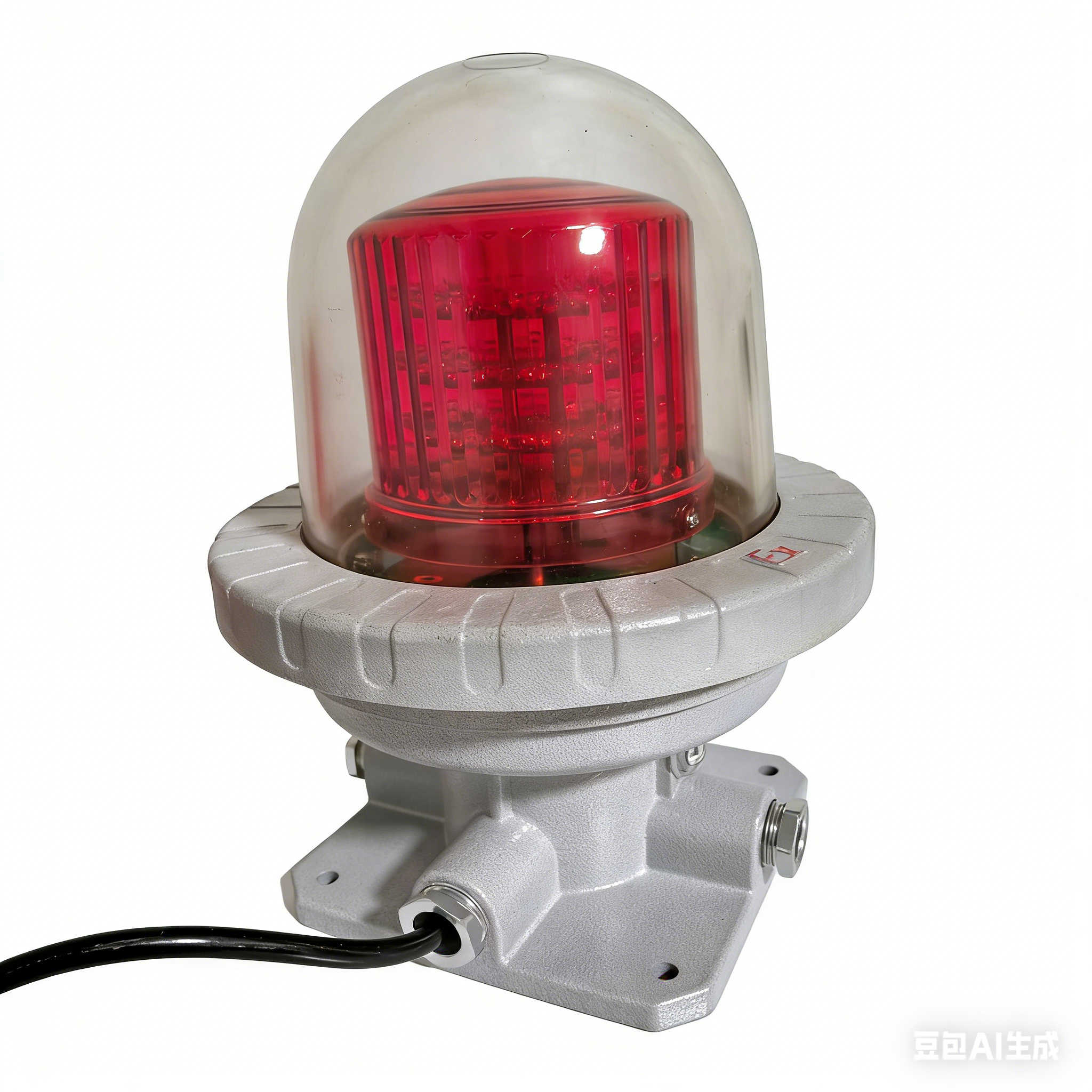

Explosion Proof LED Aircraft Warning Light for Hazardous Areas
Product Specifications
| ITEM |
PRODUCT NAME |
| CLZD81 |
Explosion-Proof Medium-Intensity Aviation Obstruction Lights |
| OTHERS |
Vertical stand optional (1 meter high). Lamp housing color, light color, style, and voltage are all customizable. Please contact us. |
| RATED POWER |
5~10W; 20W; 40W |
| INPUT VOLTAGE |
AC110~275V |
| IMPLEMENTATION STANDARDS |
GB/T 3638.1-2021; GB/T 3836.2-2021; GB/T 3836.31-2021 |
| EXPLOSION-PROOF MARKING |
Ex db IIC T6Gb; Ex tb IIIC T80ºC Db |
| LIGHT SOURCE |
LED |
| LIGHTING FREQUENCY |
20~60/min |
| PEAK LIGHT INTENSITY |
Medium ≥ 2000cd; High ≥ 20,000cdB |
| SYNCHRONIZATION METHOD |
Beidou Satellite GPS Synchronization (Optional) |
| CONTROL METHOD |
Cable Control; Light Control (Optional) |
| LIGHTING COLOR |
Red; Yellow Blue, White (Optional) |
| INLET THREAD SPECIFICATIONS |
G3/4 |
| APPLICABLE CABLE OD |
Φ9~14mm |
| OPERATING TEMPERATURE |
-25°C~+45°C |
| LIGHTING ANGLE |
360° |
| IP RATING |
IP66 |
| CORROSION RESISTANCE RATING |
WF1 * WF2 |
| LAMP DIMENSIONS (mm) |
Length 168 * Width 168 * Height 245 |
| PRODUCT WEIGHT |
3.3 KG |
Certifications
ATEX
CE
IP66
IK10
ROHS
ISO9001
Key Features
- Flameproof structure designed for use in gas and dust environments of corresponding explosion-proof grades
- Aluminum alloy die-cast housing with electrostatically sprayed surface for attractive appearance and durability
- High-brightness LED light source with low power consumption, long service life, and maintenance-free operation
- Available in low, medium, and high intensity options to meet various aviation obstruction requirements
- Highly protective sealed structure with aging-resistant silicone rubber sealing gasket for excellent protection
- Integrated chip with multiple protection circuits and optional GPS/Beidou satellite chip for light synchronization
- Automatic light-operated switch for high reliability - turns on at night and in fog, off during daylight
- Wireless synchronization available upon request for ease of use and installation
- Suitable for both steel pipe and cable wiring installations
Product Description
This explosion-proof aviation obstruction light is a specialized lighting device designed to operate safely in hazardous environments where the presence of flammable gases, vapors, or combustible dust could lead to an explosion. These lights are engineered with robust construction and sealed enclosures to prevent any sparks or arcs from igniting the surrounding atmosphere. They feature durable materials such as stainless steel or aluminum and are equipped with specially designed lenses to maximize light output while ensuring safety.
Aluminum Alloy Housing
Explosion-proof and anti-static, aluminum alloy die-cast housing with electrostatically sprayed plastic surface for corrosion resistance, anti-static, and impact resistance.
High-Strength Tempered Glass
Explosion-proof protection of high-strength tempered glass prevents arc sparks from coming into contact with flammable gases and causing explosions.
Energy-Saving Design
LED high-brightness lamp beads provide superior brightness and energy efficiency compared to conventional lighting solutions.
GPS Synchronization (Optional)
Automatic light-operated switch control with integrated chip and multiple protection circuits. Synchronous flashing of multiple lamps can be achieved through synchronization signal lines.
Applications
- Oil & Gas Platforms
- Chemical Processing Plants
- Grain Silos & Flour Mills
- Offshore Drilling Rigs
- LNG Stations
- Coal Mines & Tunnel Infrastructure
- Hazardous Storage Warehouses
- Zone 1 and Zone 2 hazardous areas
- Temperature groups T1~T6
- IIA, IIB, IIC explosive gas environments
- Building tops for signaling and alarm purposes
- High protection requirement areas with humidity
- Energy saving renovation projects
- Maintenance and replacement in difficult locations
