Industrial Explosion Proof LED Light for Hazardous Area Zone 1 Zone 2

1
MOQ
68-205USD
Price
Industrial Explosion Proof LED Light for Hazardous Area Zone 1 Zone 2
Features Gallery Product Description Chat Now
Features
Specifications
Name: Industrial Explosion Proof LED Light For Hazardous Area Zone 1 Zone 2
Ex Mark: Ex Tb IIIC T4 Gb;Ex Db IIIC T85 Db
Voltage: AC100~277V
IP Rating: IP66
Warranty: 5 Years
Customized: Available
Highlight:

Industrial explosion proof LED light

,

Hazardous area LED lighting

,

Zone 1 Zone 2 explosion proof light
Basic Infomation
Place of Origin: CHINA
Certification: ATEX
Model Number: CL970
Payment & Shipping Terms
Packaging Details: Cartons
Delivery Time: 5-8 Working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 500PSC/MONTH
Product Description

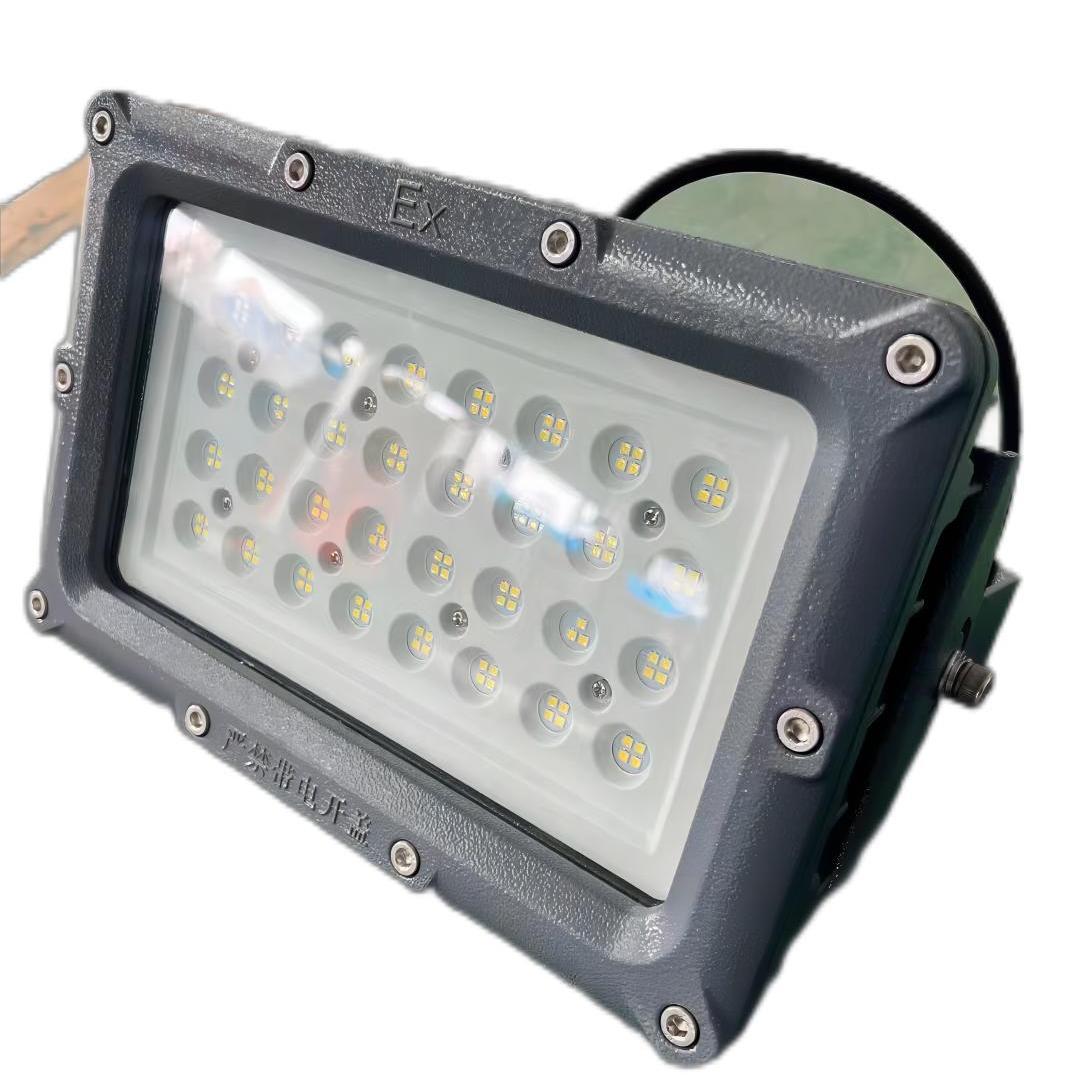

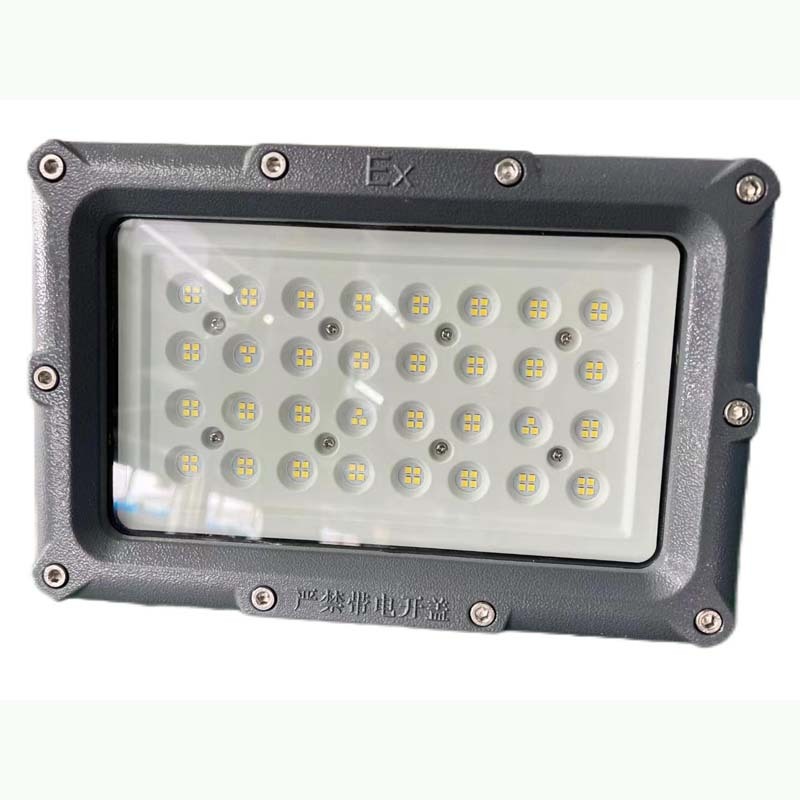

Industrial Explosion Proof LED Light for Hazardous Area Zone 1 Zone 2
The CL970 series explosion proof LED light is engineered for reliable illumination in hazardous industrial environments. With ATEX certification and robust aluminum construction, it provides safe and efficient lighting in areas where explosive gases or dust may be present.
This explosion-proof lighting fixture delivers high luminous efficiency of up to 130 lm/W, significantly reducing energy consumption compared to traditional lighting systems. The modular design provides flexible power options from 20W to 300W, allowing engineers to select optimal lighting solutions for various industrial applications.
Product Specifications
ITEM WATT LUMEN VOLTAGE CCT
MXEL-8260 50W 8400lm AC24V/110V/220V
DC12V/24V		 3000K
4000K
5000K
6500K
Dimmable
100W 12000lm
150W 18000lm
200W 24000lm
240W 28800lm
320W 33600lm
OTHERS Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, shell color etc.
Digital Smart System (DALI, DMX, 0-10V)
Technical Parameters
MODEL: CL970 VOLTAGE: AC100~277V
EFFICIENCY: 120Lm/W POWER FACTOR: >0.95
BEAM ANGLE: 30°,45°,60°,120° WORK TEMP: -30ºC ~ 50ºC
ATEX LEVEL: Zone1/Div1 FREQUENCY: 50/60Hz
CRI: ≥70RA LED CHIPS: CREE
MATERIAL: Aluminum Alloy DRIVER: Meanwell/Other
IP GRADE: IP66 IK GRADE: IK10
LIFESPAN: 100000Hrs ANTI-CORROSION GRADE: WF2
AMBIENT TEMP: -40ºC ~ +55ºC
-40°F ~ +131°F		 INSTALLATION: Bracket, ceiling, sitting, suction, inserted
LED QTY: 280PCS LIGHT SOURCE: LED
WARRANTY: 3/5 Years START-UP TIME: ≤0.2S
SIZE: 425×315×175mm WEIGHT: 17.5kg
CERTIFICATIONS: ATEX, CE, IP66 IK10, ROHS, ISO9001
Key Features
  • Prevent fire and explosion
  • Keep workers safe
  • Improve work efficiency
  • High lumen output, excellent CRI, accurate CCT
  • High brightness with no flickering
  • Meanwell driver ensures long lifespan
  • Easy installation with versatile mounting options
  • Ideal replacement for conventional incandescent lamps
  • No mercury or hazardous materials, fully CE compliant
Industrial Explosion Proof LED Light for Hazardous Area Zone 1 Zone 2 0
Precision-Aiming Flexibility
  • Adjustable Beam Angle: Easily pivot and tilt the light head to direct light exactly where needed
  • Eliminate Light Waste: Focus illumination on specific areas, increasing efficiency and reducing energy waste
  • Customizable Layout: Perfect for task lighting, highlighting displays, or adapting to unique space configurations

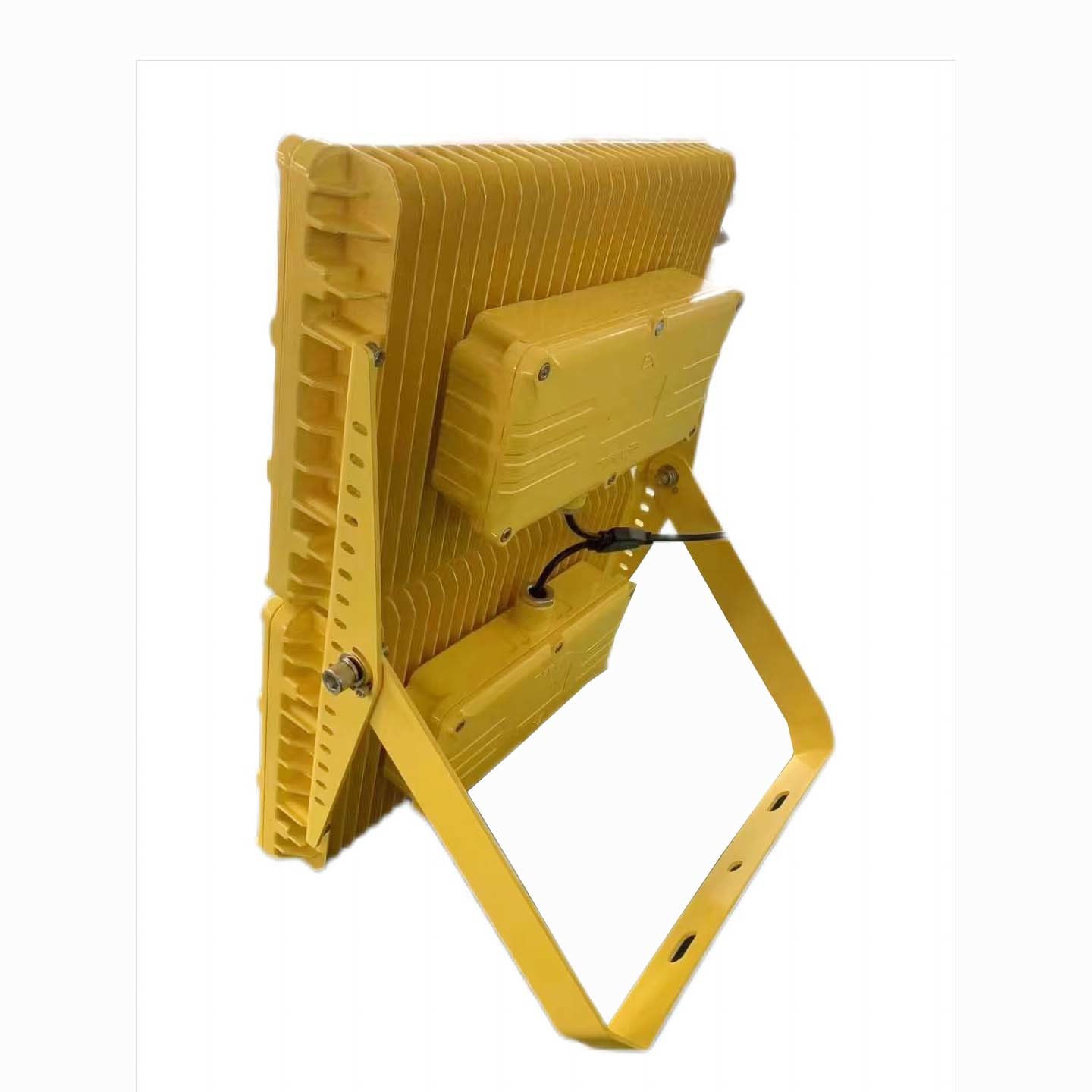

Advanced Thermal Management for Maximum Stability
  • Large-Area Cooling System: Features extensive heat dissipation structure for efficient cooling
  • Prevents Overheating: Actively manages thermal conditions to ensure reliable, stable operation
  • Promotes Longevity: Maintains lower temperature to significantly extend product service life
Industrial Explosion Proof LED Light for Hazardous Area Zone 1 Zone 2 1
Industrial Explosion Proof LED Light for Hazardous Area Zone 1 Zone 2 2

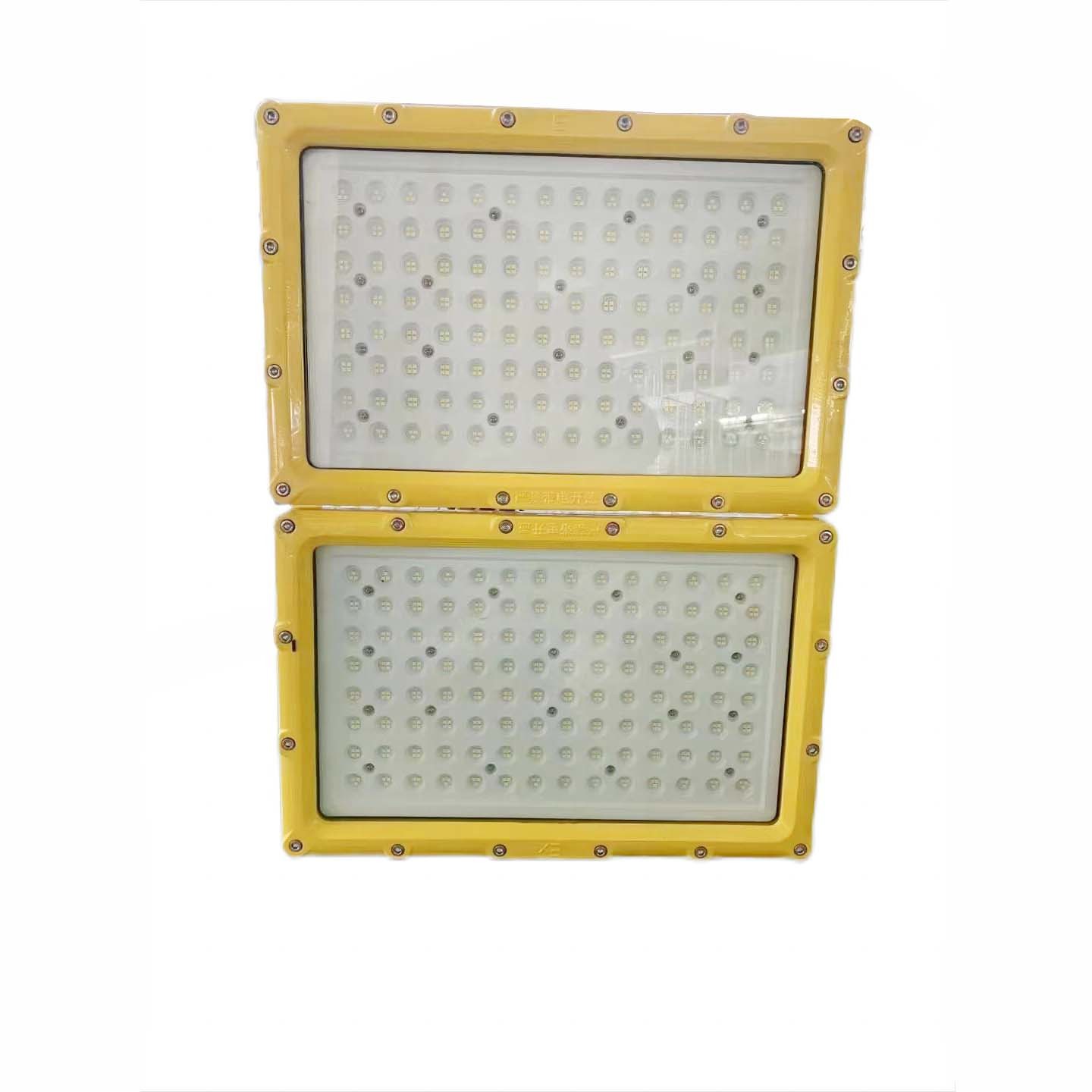

Individual Lens Technology for Optimal Efficiency
  • Dedicated Micro-Lens per LED: Ensures precise light control and maximizes output
  • Dramatically Reduces Light Waste: Minimizes spillage for higher overall efficiency
  • Sharper, Targeted Illumination: Creates well-defined light patterns for superior visibility
Industrial Applications
This explosion proof LED light is widely used in hazardous industrial environments including:
  • Oil and gas facilities
  • Chemical and petrochemical plants
  • Pharmaceutical factories
  • Pulp and paper mills
  • Wastewater treatment plants
  • Power generation stations
  • Gas stations
  • Equipment depots
  • Petroleum pipelines
  • Oil platforms
  • Warehouses
  • Tunnels
  • Marine environments
  • Explosive workshops
Frequently Asked Questions
How can we guarantee quality?
Always a pre-production sample before mass production. Always final inspection before shipment. We offer 2-5 years warranty for our products.
Do you have any MOQ limit for light order?
MOQ, 1pc for sample checking is available.
Can you accept putting my logo on light product?
Yes. Please inform us formally before production and confirm the design first based on our sample.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW. Accepted Payment Currency: USD, GBP, CNY. Accepted Payment Type: T/T, L/C. Language Spoken: English, Chinese.
What is the warranty policy?
Our products are produced under strict quality control with a defective rate less than 0.2%. During the guarantee period, we will send new lights with new orders for small quantities. All products are tested before shipment and packaged properly. For defective batch products, please test them before assembly and inform us within 3 days of receipt. We will arrange replacements if the situation is confirmed.
