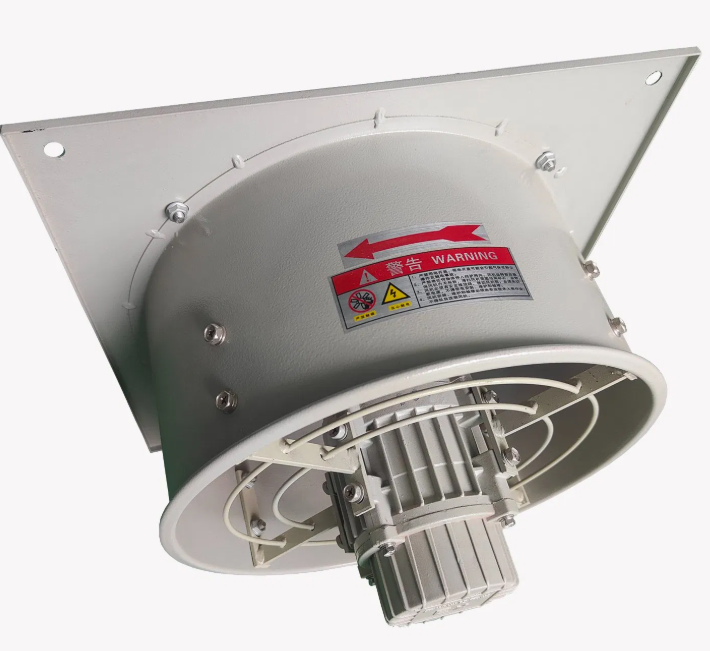

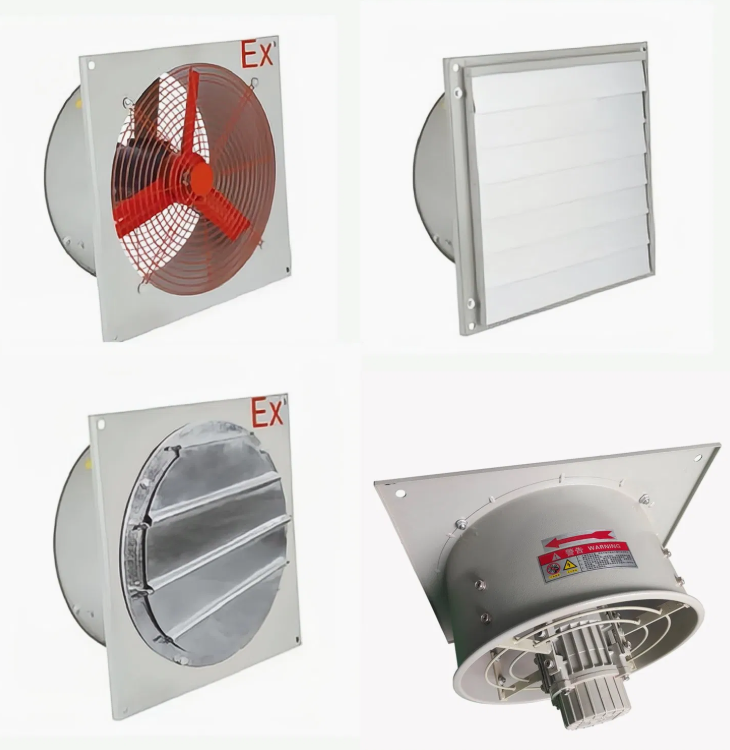

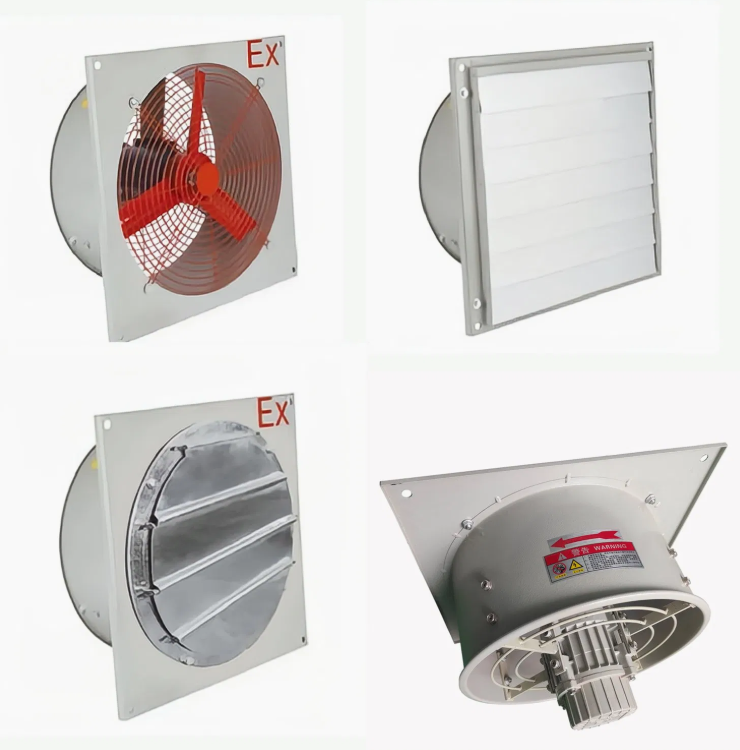

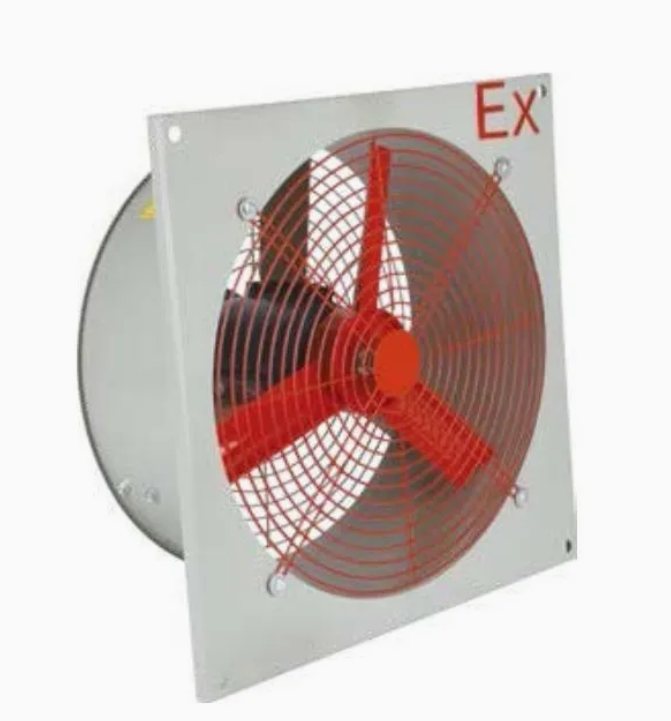

Aluminum Alloy Explosion Proof Fan Wall Exhaust Axial Fan IP55

2
MOQ
55-78
Price
Aluminum Alloy Explosion Proof Fan Wall Exhaust Axial Fan IP55
Features Gallery Product Description Chat Now
Features
Specifications
Name: Aluminum Alloy Explosion Proof Wall Exhaust Axial Fan
Material: Thickened Iron Sheet
Blades: DIE-CAST ALUMINUM IMPELLER
Voltage: 110V/220V/380V
Type: Exhaust And Suction(optional)Type
Fittings: Custom Louvers
Air Volume: 2200-9500m³/h
Ex Mark: Exd IIB T4 Gb
Protection: IP55
Surface: Powder Coating
Highlight:

aluminum alloy explosion proof fan

,

wall exhaust axial fan

,

explosion proof axial fan IP55
Basic Infomation
Place of Origin: China
Model Number: CBFG
Payment & Shipping Terms
Packaging Details: Cartons or Pallets
Delivery Time: 7 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000Units/month
Product Description
Aluminum Alloy Explosion Proof Wall Exhaust Axial Fan
Applications
  • Zone 1 & 2, 21 & 22 hazardous areas
  • Equipped with explosion-proof motor
  • Strong anti-corrosion capability
  • Multiple installation methods available
  • Various impeller speeds and motor powers with alternative air volume options
Product Features
  • Convenient and easy installation with metal aluminum construction and metal spray coating
  • Customizable colors and LOGO options available
  • Explosion-proof motor with Ex d IIB T4 Gb rating and IP54 waterproof/dustproof protection
  • Suitable for flammable/explosive atmospheres and dust environments in Zone 1&2, Zone 21&22
  • Housing: Copper-free aluminum (AlSi12) with epoxy powder coating (RAL7035)
  • Exterior: Stainless steel construction
  • Globe: Tempered glass components
  • Gasket: Silicon rubber sealing
  • Aluminum alloy provides excellent corrosion resistance
  • Multiple air volume and power configurations available
  • Customizable fan blade options: 3 or 4 blades
Technical Specifications
Standards: GB3836.1-2000, GB3836.2-2000, IEC60079
Explosion-proof Mark: Exd IIB T4
Rotation Speed: 1450 r/min
Inlet Specification: G3/4
Cable Specification: 9mm~14mm

Name

Type

Wattage

(kw)

Volume

(m3/h)



Speed

(r/min)

Voltage(V)

Explosion proof axial fan

CBFG-300

0.12

2200

1450

220

380

CBFG-300

0.18

2400

1450

220

380

CBFG-300

0.25

4900

1450

220

380

CBFG-300

0.37

9500

1450

220

380
