Home /Products/Explosion Proof Fan/Explosion proof Industrial Fan Exhaust Ventilation Axial Fan

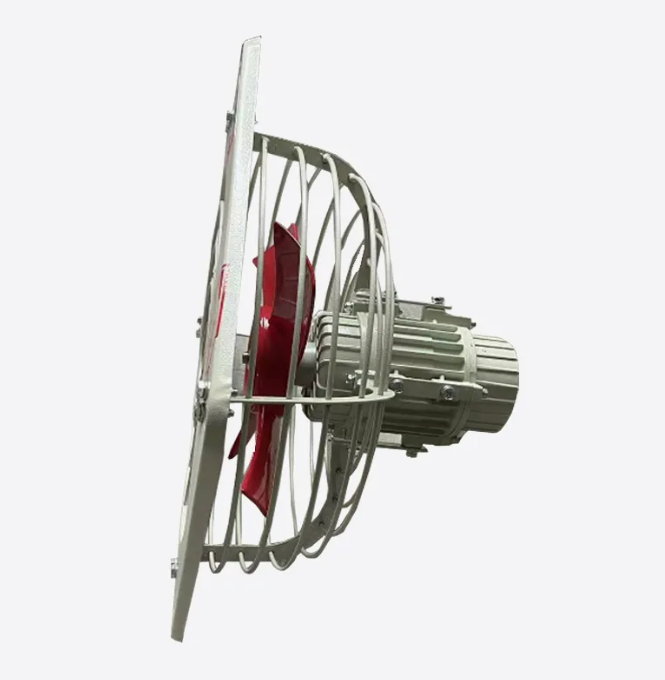

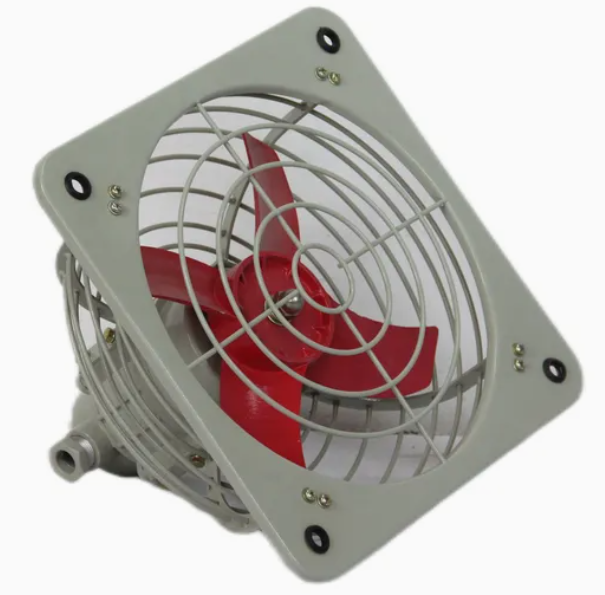

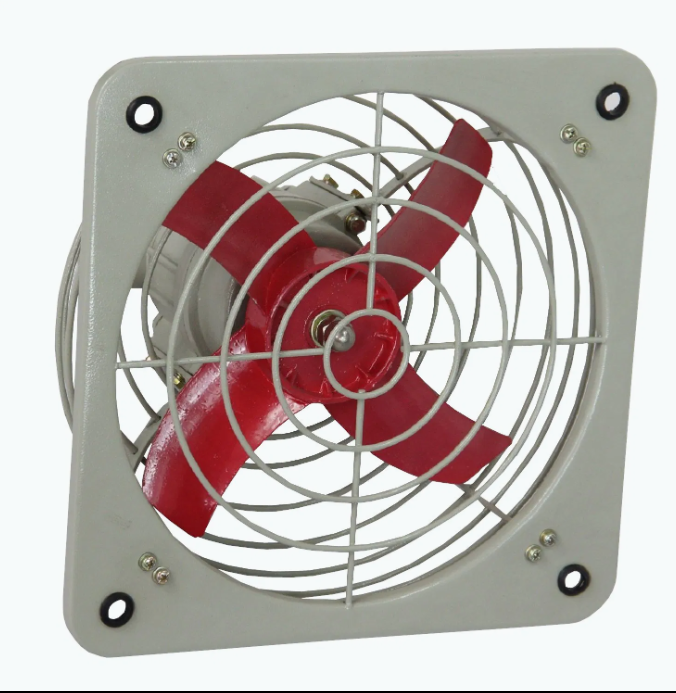

Explosion proof Industrial Fan Exhaust Ventilation Axial Fan

2
MOQ
55USD-85USD
Price
Explosion proof Industrial Fan Exhaust Ventilation Axial Fan
Features Gallery Product Description Chat Now
Features
Specifications
Name: Explosion Proof Ventilation Axial Fan
Type: Exhaust And Suction(optional)Type
Rated Voltage: 110V/220V/380V
Ex Mark: Ex De IIB T6 Gb
Protection: IP55
Entries: G 3/4"
Material: Thickened Iron Sheet
Fittings: Customized Louvers
Air Volume: 2000-9500m³/h
Highlight:

industrial axial exhaust fan

,

explosion proof ventilation fan

,

industrial ventilation axial fan
Basic Infomation
Place of Origin: China
Model Number: CBAG
Payment & Shipping Terms
Packaging Details: Cartons or Pallets
Delivery Time: 7 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000UNIT/M
Product Description
Industrial Fan Exhaust Ventilation Axial Fan
Key Features
  • Explosion-proof ceiling fan assembly includes Ex-motor, blades, and cylinder components
  • Air duct constructed from quality steel plate welding with aluminum alloy blades featuring high-voltage static plastic-sprayed surface
  • Aesthetic integrated one-body assembly frame with damping device for safe, secure operation and low noise levels
  • Conduit wiring system for enhanced safety
Applications & Specifications

Convenient and easy to install fan constructed from metal aluminum with sprayed metal finish. Custom color and LOGO options available.

Equipped with explosion-proof motor rated Ex d IIB T4 Gb and IP65 waterproof/dustproof protection. Suitable for flammable and explosive atmospheres and dust environments in Zone 1&2, Zone 21&22.

Construction Materials:

  • Housing: Copper-free aluminium (AlSi12) with epoxy powder coating (RAL7035)
  • Exterior: Stainless steel
  • Globe: Tempered glass
  • Gasket: Silicon rubber

Customizable fan blade configuration available in 3 or 4 blade options. High efficiency drivers and LEDs provide optimal performance in harsh industrial applications.

Technical Parameters
Standards: GB3836.1-2000, GB3836.2-2000, IEC60079
Explosion-proof Rating: Exd IIB T4
Rotation Speed: 1450 r/min
Inlet Specification: G3/4
Cable Specification: 9mm~14mm
Type CBAG-300 CBAG-400 CBAG-500 CBAG-600
Power(W) 120 180 250 750
Louver grolle 40 52 65 78
Air vilume(m³/h) 2000 2400 4900 9500
Rotating Speed (r/min) 1450 1450 1450 1450
Blade diameter(mm) 300 400 500 600


Tag:

explosion proof axial fan

Explosion Proof Ventilation Fan

Explosion Proof Vent Fan
