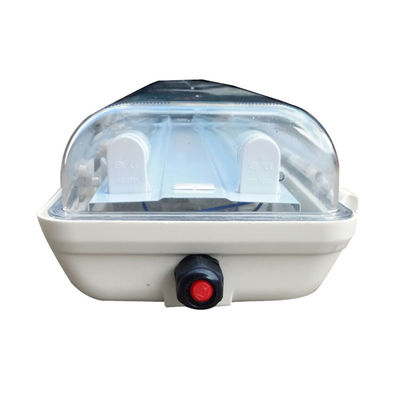

T5 T8 Flameproof Tube Light IP66 Ex Proof Fluorescent Lighting

Features of the product:
1. Scope of application: zone 1, zone2, zone21, zone22 hazardous area locations
IIA, IIB explosive gas atmosphere
2. The shell is made of ZLIO2 aluminum alloy die-casting, and the surface is high-voltage electrostatic spray
3. Tempered glass cover, with strong impact resistance
4. Both steel pipe and cable wiring are acceptable
5. Thread only: G3/4”

technical parameter:
Rated voltage: AC220V50/60HZ, rated power: 9Wx1, 9Wx2 (type l) 18Wx1x 18Wx2 (type ll)

Explosion-proof mark: ExdembllCT6Gb/ExtDA21 IP66T80°C, protection level: IP66, corrosion protection level: WF2

Optional function: human body induction.
Lead-in device: M25X1.5 lead-in specification, suitable for 9mm~12mm cables, terminal block: W4mm, reliable wire connection

Installation method: Ceiling type (X), wall type (b), boom type 1 (g1), boom type 2 (g2), guardrail type (h), flange type (f), hanging chain type (L ), curved rod type (w)


Specification:

The BYS-2X18W Explosion Proof Fluorescent Fixture from Crown Extra is ATEX/IECEx approved for Zones 1 and 2 and 21 and 22. This 18-watt unit is equipped with two, 4-foot T8/T6 LED tube lamps that operate on 220-240V AC.(can choose LED tube) The IP66-rated fixture is made out of non-sparking materials that are highly resistant to rough impacts (IK10). This fluorescent lamp can be mounted on ceilings or walls using a pair of stainless steel mounting brackets.

Operation precautions:
1. Don't switch explosion-proof and anti-corrosion fluorescent lamps too frequently;

2. If the voltage is very low, the two stages of the lamp will emit tungsten at the beginning of lighting, which will cause a lot of dot-shaped pollutants inside the lamp, which will become one of the reasons for the damage of the lamp. Therefore, it is recommended to Turn on the lights under high voltage conditions;

3. Explosion-proof and anti-corrosion fluorescent lamps have many lines and need auxiliary devices, so they must be used in conjunction with corresponding transformers, capacitors, etc. to ensure that the lamp is started to a suitable power;

4. Pay attention to maintain a ventilated environment, not only to take away the dust, but also to reduce the temperature of the lamp, so as to extend the life of the lamp.

Company introduction:

Changzhou JUJUN Ex-proof company is a comprehensive enterprise integrating R&D, production, sales and service.
We mainly produce and operate maintenance-free LED explosion-proof lamps, explosion-proof lamps, explosion-proof electrical appliances, explosion-proof accessories, low-voltage electrical components, molds, power distribution switch control equipment and other products.
It is located in the Yangtze River Delta region, on the verge of Shanghai, with convenient transportation, welcome customers to visit our factory.

 FAQ:
1. who are we?
We are based in Jiangsu, China, start from 2016,sell to North America(20.00%),Central America(15.00%),Eastern Asia(12.00%),South Asia(10.00%),Mid East(10.00%),Southeast Asia(10.00%),Domestic Market(4.00%),Africa(4.00%),South America(2.00%),Northern Europe(2.00%),Eastern Europe(1.00%),Oceania(1.00%),Southern Europe(1.00%),Western Europe(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Spray booth,prep station,car washing machine,car lift,powder coating line

4. why should you buy from us not from other suppliers?
Yancheng Biaosin Import&Export Co.,Ltd is in yancheng city,in charge of the export and import of jiangsu jing-zhongjing industry coating equipment. We're enterprise specializing in manufacture and sales of industrial painting equipment,and relaited machine
