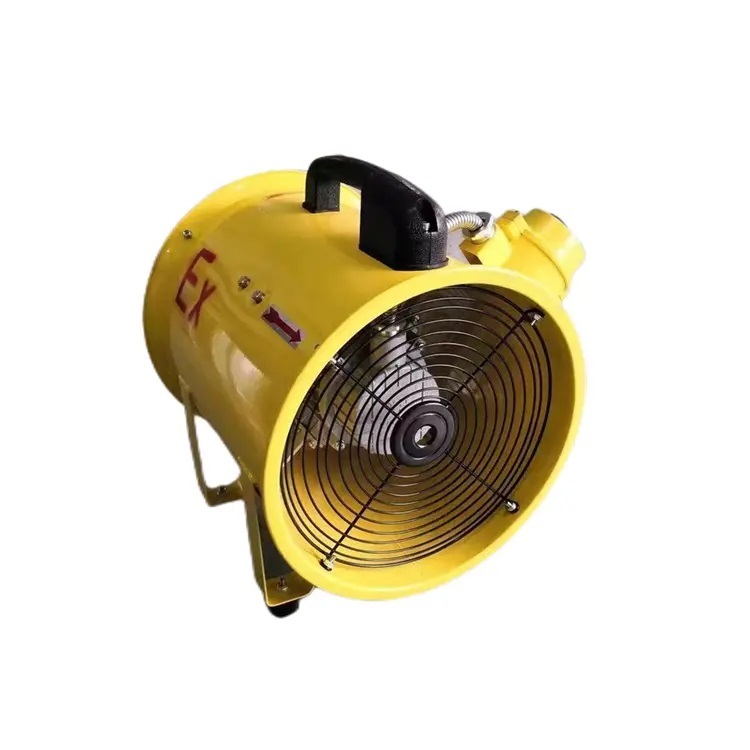

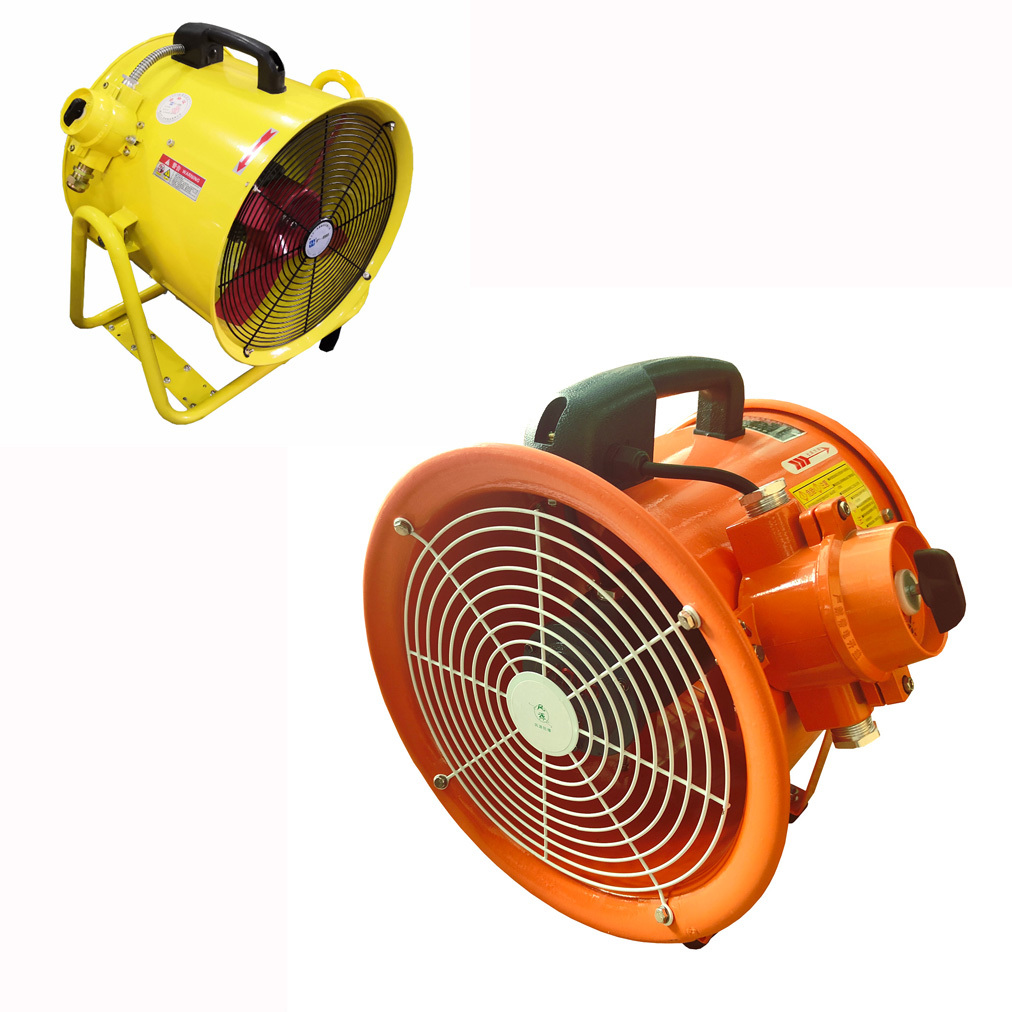

Portable Handle Safety Explosion-Proof Axial Flow Fan

Product Description

The BCFT Series is a portable explosion-proof axial flow fan engineered for hazardous areas where flammable gases, vapors or combustible dusts may be present. Available in six models (200–500 mm), it delivers high air volume and high static pressure for oil & gas, petrochemical, marine repair, tunneling and confined-space applications in Southeast Asia and the Middle East.

Explosion-Proof Design

• Explosion-proof motor with flameproof enclosure

• Non-sparking cast aluminum alloy impeller

• Anti-static housing, grille and ducting

• Sealed electrical components and integrated switch

• One-piece cast aluminum finned motor housing for heat dissipation

Explosion-proof rating (e.g. Ex d IIB T4 / IIC T4, ATEX / IECEx) to be confirmed per model and market.

Key Features

• Detachable legs and handles for flexible, mobile operation

• CAD-optimized airflow with bell-mouth inlet ring — high volume, high pressure

• Telescopic anti-static flexible duct for long-distance delivery; customizable

• Hot-dip galvanized steel housing with automotive-grade paint — corrosion resistant

• Powder-coated (galvanized) guard grille

• Injection-molded handle with built-in switch

• Copper-wire motor with cast aluminum finned housing

Applications

Ventilation and air exchange in explosion-hazard areas: underground pipelines, telecom conduits, tunnels and wells. With anti-static duct, ideal for long-distance and confined-space work, including:

• Welding fume, smoke, dust and paint odor extraction in shipbuilding and repair

• Oil & gas, petrochemical and chemical facilities and tank farms

• Underground tunnel, mine and well engineering

• Chemical tanks, vessels and confined spaces

• Workplace safety ventilation equipment
