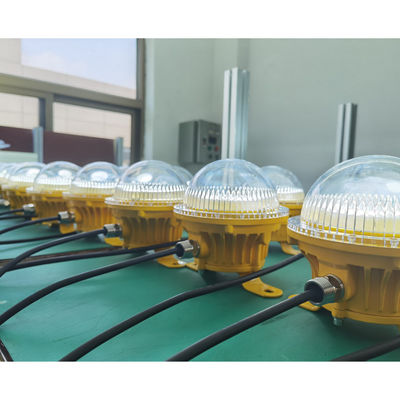

Class 1 Division 1 24 Vac Lamps 10w 20w 30w Explosion Proof LED Lighting Fixture
Features:
The lamp adopts a pure explosion-proof and increased safety structure, which can be used when the gas and dust environment of the corresponding explosion-proof level exist at the same time;
The lens has high light efficiency, fogging anti-glare design, and a large luminous angle;
It is suitable for ceiling-mounted and wall-mounted installation, steel pipe or cable wiring.
High-protection structural sealing design, equipped with aging-resistant silicone rubber sealing gasket, to achieve good protection performance;
The product shell adopts one-time die-casting molding process, the product surface is smooth, the appearance is beautiful and generous, the internal structure of the metal is high-density, there are no defects such as bubbles and sand holes, and the product shell has strong impact resistance and good protection performance;
Equipped with brand drive device, wide voltage input, with constant current, open circuit protection, short circuit protection, surge protection and other functions;
Specification:
| Surface color |
Yellow, Grey or customized |
| Product name |
LED explosion proof high bay lights |
| Power |
10W 20W 30W |
| Beam Angle |
110° |
| IP Rating |
IP65 |
| PF |
≥0.95 |
| CRI (Ra>) |
75 |
| Lamp Luminous Efficiency(lm/w) |
125 |
| Working Temperature(℃) |
-25℃~45℃ |
| Material |
aluminum |
| LED chip |
SMD3030 |
| Warranty |
3 years |
| Input Voltage(V) |
DC24V / AC24V |
| Color Temperature |
3000-6500K |
| Frequency Range |
50/60HZ |
Application:
Widely used in petroleum, chemical industry, natural gas, coal, aerospace, shipbuilding, marine, military industry, fire protection, electricity
It can be used for general lighting and work lighting in dangerous places such as factories, railways, metallurgy, medicine and other industries;
Suitable for zone 1 and zone 2 of explosive gas atmosphere;
Applicable to ⅡA, ⅡB, ⅡC explosive gas atmosphere;
Suitable for zone 21 and zone 22 in combustible dust environment;
Suitable for places with corrosive gas, humidity and high protection requirements;
Company introduction:
Changzhou JUJUN Ex-proof company is a professional LED lighting manufacturer and it founded in 2011, Specialized in explosion proof led lights, strobe and sounder light, junction box, plug and sockets, switches, push buttons, exhuast fan, axial flow fan and so on.
There are 30,00 square meters of factory buildings. With over 10 years of lighting experience, profound industry knowledge in the field of the explosion proof light, appliances etc.
Welcome customers to visit our factory.
FAQ:
Q. Can I have a sample order for explosion proof led light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q:What certificates do you have for explosion proof led light fixture?
A:We have passed ATEX.
Q:What place are your products used in?
A:They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal and other industries.
Q. Do you have any MOQ limit for explosion proof led light?
A: Low MOQ, 1pc for sample checking is available
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7-10 days to arrive. Airline and sea shipping also optional.
Q: Do you offer guarantee for explosion proof led light?
A: Yes, we offer 3-5 years warranty to our products.
Q: is OEM or ODM available for explosion proof led light?
A: Yes
Products details:
