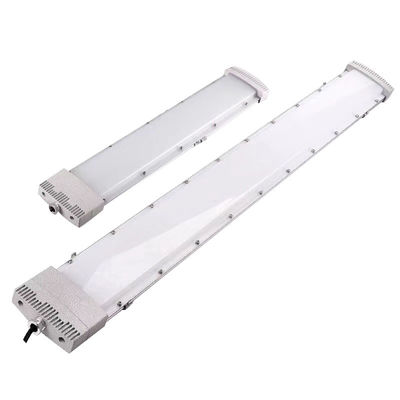

Waterproof IP66 Linear Light Fixture Ceiling Lamps 40w Explosion Proof LED Lighting
Features:
The lamp adopts a pure explosion-proof and increased safety structure, which can be used when the gas and dust environment of the corresponding explosion-proof level exist at the same time;
The lens has high light efficiency, fogging anti-glare design, and a large luminous angle;
It is suitable for ceiling-mounted and wall-mounted installation, steel pipe or cable wiring.
High-protection structural sealing design, equipped with aging-resistant silicone rubber sealing gasket, to achieve good protection performance;
The product shell adopts one-time die-casting molding process, the product surface is smooth, the appearance is beautiful and generous, the internal structure of the metal is high-density, there are no defects such as bubbles and sand holes, and the product shell has strong impact resistance and good protection performance;
Equipped with brand drive device, wide voltage input, with constant current, open circuit protection, short circuit protection, surge protection and other functions;
Specification:
| Explosion protection |
| Ex Mark |
II 2G Ex d e IIC T6 / II 2D Ex td T80℃ |
| For use in |
Zone 21, 22 |
| Electrical data |
| Rated voltage |
110-240VAC, 50Hz |
| Power factor |
＞0.95 |
|
|
| THD |
＜20% |
| Luminous characteristics |
| Power consumption [W] |
20-24 |
40 |
60 |
| Colour rendering [CRI] |
70±2 |
| Colour temperature [K] |
2500~6500 |
| Luminaire efficiency [Lm/W] |
115~130 |
| Beam angle |
110° |
| Mechanical data |
| Degree of protection |
IP65 |
| Cable entry |
G1/2" |
| Weight [kg] |
1.3 |
1.7 |
1.9 |
| Terminal |
≤2.5 mm² |
| Mounting Styles |
Ceiling; Wall Bracket; Pendant |
Application:
1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1~T6 temperature groups;
5. It is applicable to energy-saving transformation projects and places where maintenance and replacement are difficult;
6. It is widely used for lighting in oil exploitation, oil refining, chemical industry, gas station, textile, food processing, offshore oil platforms, oil tankers and other places.
Company introduction:
Changzhou JUJUN Ex-proof company is a comprehensive enterprise integrating R&D, production, sales and service.
We mainly produce and operate maintenance-free LED explosion-proof lamps, explosion-proof lamps, explosion-proof electrical appliances, explosion-proof accessories, low-voltage electrical components, molds, power distribution switch control equipment and other products.
It is located in the Yangtze River Delta region, on the verge of Shanghai, with convenient transportation, welcome customers to visit our factory.
FAQ:
Q:What certificates do you have for explosion proof led light fixture?
A:We have passed ATEX.
Q:What place are your products used in?
A:They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal and other industries.
Q:Can I have a sample order for explosion proof led light fixture?
A:Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q:Can you accept OEM or ODM for explosion proof led lighting?
A:Yes. Please inform us and confirm the design firstly based on our sample.
Q. Do you have any MOQ limit for explosion proof led light?
A: Low MOQ, 1pc for sample checking is available
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7-10 days to arrive. Airline and sea shipping also optional.
