Features

Specifications

Type: Axial Fan

Electric Current Type: AC

Mounting: Free Standing

Warranty: 1year

Power: 0.15kw-0.75kw

Protection Grade: IP54

Voltage: 110V/220V/380V

Speed: 2800r/Min

Specification: 300X180X150 Cm

Highlight:

Low Noise Axial Flow Fan

Large Air Volume Exhaust Fan

Ventilation Exhaust Fan

Basic Infomation

Place of Origin: China

Brand Name: Cherubim

Certification: ATEX

Model Number: SF

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 10-15 days

Supply Ability: 50000/Month

Gallery

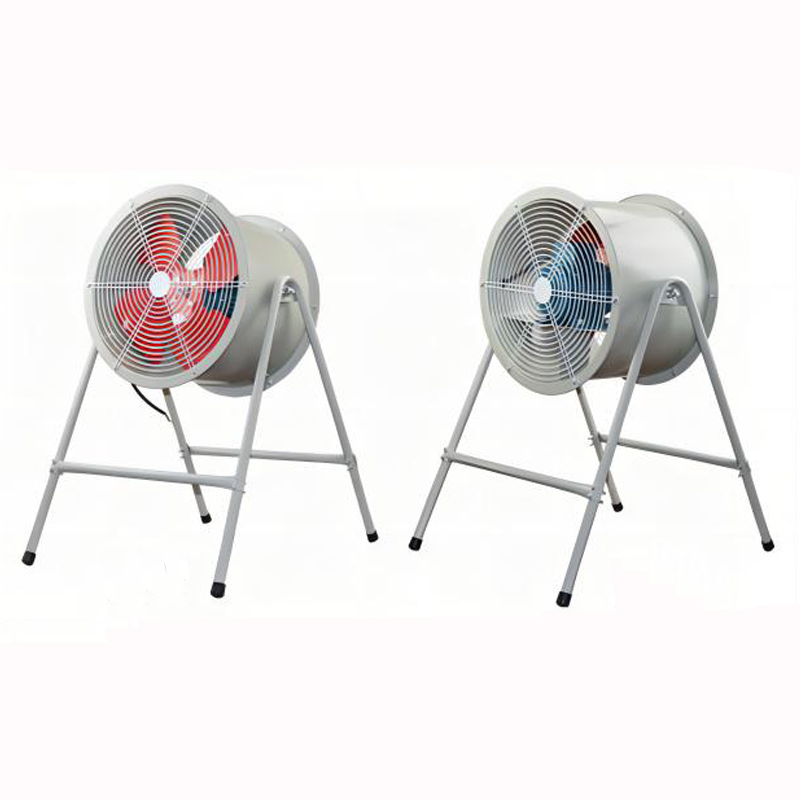

Low Noise Large Air Volume Axial Flow Fan Ventilation Exhaust Fan

Product Description

Features

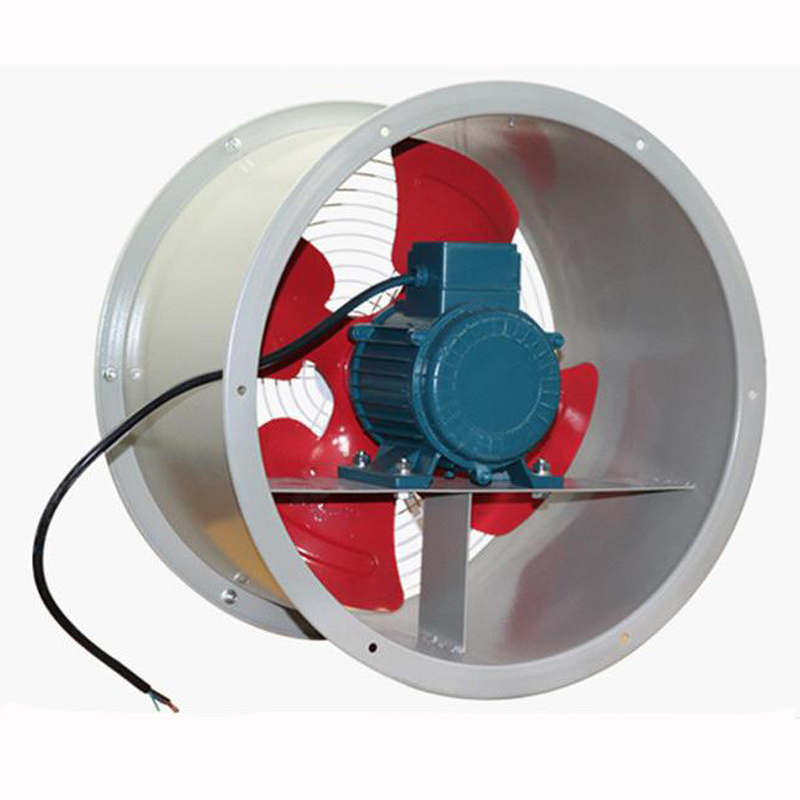

1. Explosion-proof fan consists of Ex-motor, blades and cyli-nder etc.

2. Air duct of explosion-proof axial flow fan is formed by welding of quality steel plate, and the fan blades are cast in aluminum alloy and with high voltage static plastic-sprayed surface.
3. Aesthetic appearance, integrate ong-body assemble frame, safe and secure, with damping device and low-operating noise.
4. Conduit wiring.

Applications

1. The CBF fan is convenient and easy to install. It is made of metal aluminum and sprayed metal. Color and LOGO can be customized.
2. The explosion-proof motor is installed, the explosion-proof grade is Ex d IIB T4 Gb, and the waterproof and dustproof grade is IP54. It can be used in the flammable and explosive atmosphere and dust environment of Zone 1&2, Zone 21&22.
3. Housing: copperfree aluminium (AlSi12) with epoxy powdered coated (RAL7035)
Exterior: stainless steel
Globe: tempered glass
Gasket: Silicon rubber
Aluminum alloy has strong anti-corrosion ability in material, and there are many kinds of air volume and power to choose from.
4. The number of fan blades can be customized, either 3 or 4.

Product Parameters

Type	φA	B	Φ1	Φ2	Mounting Holes	Blade Diameter	Number of Blades
2#	258	235	214	233	4-φ7	193	4
2.5#	304	235	260	282	4-φ7	240	4
3#	360	235	307	332	4-φ7	290	4
3.5#	420	323	367	390	6-φ7	349	4
4#	469	323	415	443	6-φ7	390	4
5#	573	323	516	541	6-φ7	490	4
6#	670	458	610	639	6-φ7	580	4
7#	764	502	708	740	6-φ7.5	665	4
8#	869	504	815	840	6-φ7.5	772	4
9#	962	700	897	930	6-φ10	860	4
10#	1062	700	1000	1030	6-φ10	970	4
