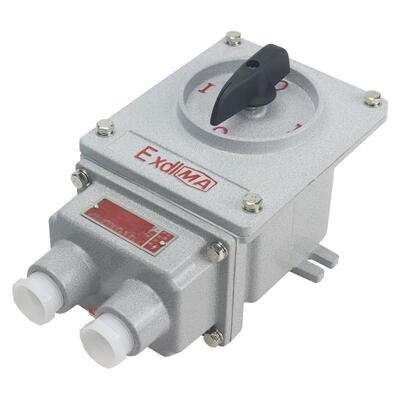

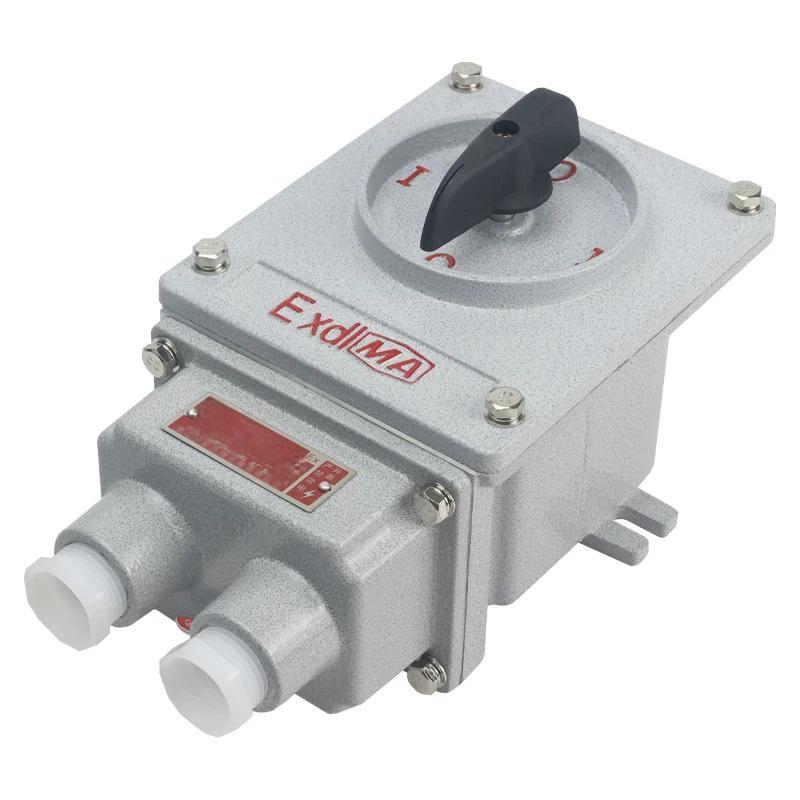

Explosion Proof Selector Switch / Rotary Selector Switch

Frequently Asked Questions About Explosion Proof Selector Switch

1. What is an explosion proof selector switch used for?

Answer:
An explosion proof selector switch is designed for controlling and selecting different operating modes of electrical equipment in hazardous areas. By rotating the handle, operators can switch between different positions, such as ON/OFF, AUTO/MANUAL, or 0-1-2 control modes.

It is widely used for explosion proof control panels, motors, fans, pumps, lighting systems, and industrial equipment in oil & gas, chemical, mining, and manufacturing industries.

2. What is the difference between an explosion proof selector switch and a standard rotary switch?

Answer:
The main difference is the protection design and application environment. An explosion proof selector switch is installed in a flameproof enclosure that prevents internal sparks or electrical arcs from igniting surrounding explosive gases or dust.

Compared with standard rotary switches, explosion proof selector switches are designed for hazardous locations and provide safer operation in areas with flammable gases, vapors, or combustible dust.

3. What positions are available for explosion proof rotary selector switches?

Answer:
Explosion proof rotary selector switches are available with different positions according to specific control requirements, including:

• 0-1 position (OFF/ON)
• 0-1-2 position (two-function selection)
• AUTO-OFF-MANUAL position
• Forward-Stop-Reverse position

The number of positions and contact configuration can be customized based on the application requirements.

4. Where can explosion proof selector switches be installed?

Answer:
Explosion proof selector switches are suitable for hazardous areas where explosive atmospheres may occur, including:

• Oil refineries and petrochemical plants
• Gas stations and fuel storage facilities
• Chemical processing plants
• Offshore platforms
• Paint spraying workshops
• Mining and industrial facilities

Depending on the certification and protection level, they can be used in Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas.

5. How do I choose the right explosion proof selector switch?

Answer:
To select the correct explosion proof selector switch, please consider the following factors:

• Hazardous area classification (Zone 1/2 or Zone 21/22)
• Required explosion proof certification (ATEX, IECEx, etc.)
• Rated voltage and current
• Number of switch positions
• Contact configuration (NO/NC)
• Cable entry size and installation requirements

Our technical team can help recommend the suitable model according to your electrical system and application conditions.
