Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured

10
MOQ
3usd-38usd
Price
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Features Gallery Product Description Chat Now
Features
Specifications
Name: Explosion Proof Cable Gland
Ex Mark: Exd IICT4 Gb
Material: SS304, Copper-nickel Plated, Copper, Carbon Steel Available.
Protection: IP66
Thread: G，NPT;METRIC
Customized: Avaliable
Highlight:

Exd Explosion Proof Cable Glands

,

SS316 waterproof cable gland

,

double compression armoured cable gland
Basic Infomation
Place of Origin: China
Model Number: BDM
Payment & Shipping Terms
Packaging Details: Cartons or Pallets
Delivery Time: 7 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000
Product Description
Exd Explosion Proof SS304 SS316 Cable Gland IP66 Waterproof Double Compression Armoured
Product Overview
Double Compression Armoured EX Cable Gland featuring explosion-proof construction with nickel plated brass and waterproof IP66 rating for superior cable protection in hazardous environments.
Technical Specifications
Parameter Specification
Applicable Cable Diameter 5-77 mm
Material Brass, Nickel plated brass, SS304
IP Level IP66
Type High Voltage, Low Voltage
Thread Type Metric, M
Model Number M12-M63
Work Temperature -60℃ to +100℃
Place of Origin China
Key Features
  • Double compression design for enhanced cable security
  • Explosion-proof construction (Exd certified)
  • Waterproof IP66 rating for harsh environments
  • Available in stainless steel SS304/SS316 and nickel plated brass
  • Multiple thread options: M metric/PG/G/NPT
  • High temperature resistance: -40℃ to +100℃ (120℃ short term)
  • NBR/Silicone Rubber seals for optimal protection
  • Ideal for power equipment and cable protection applications
Product Images

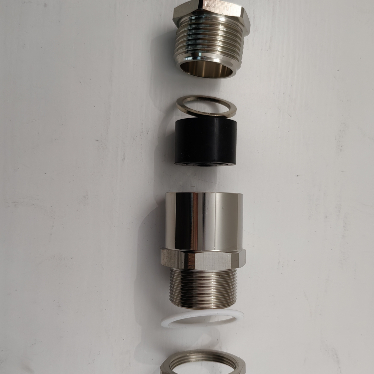

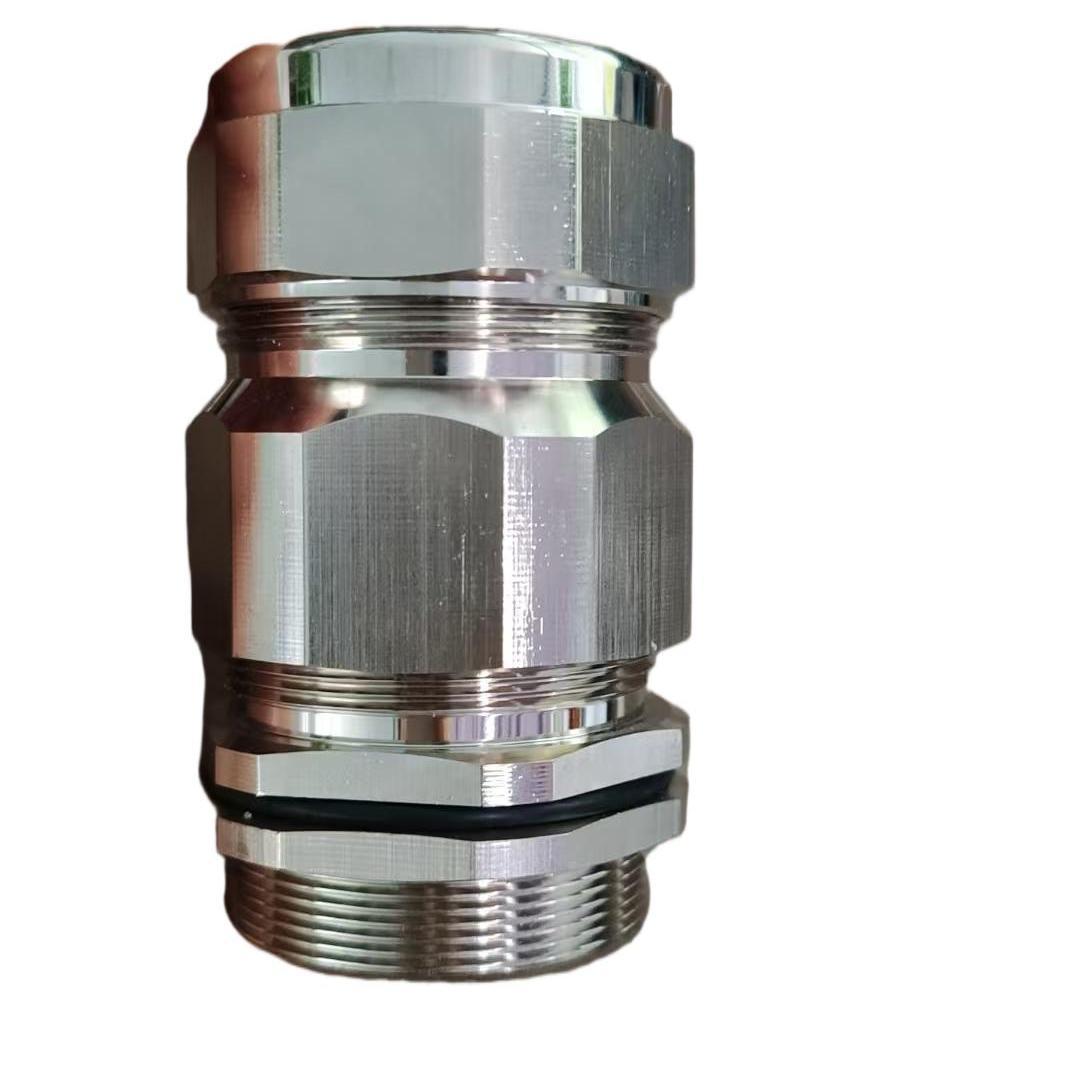

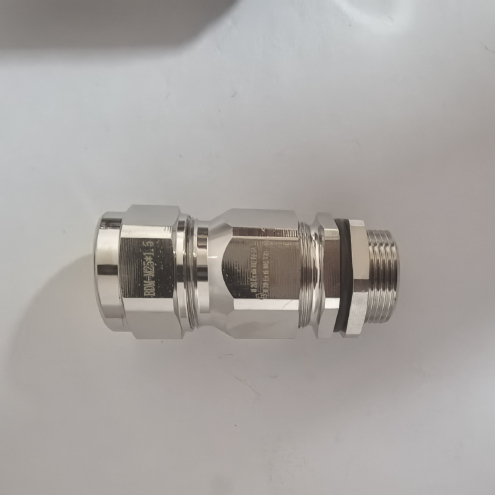

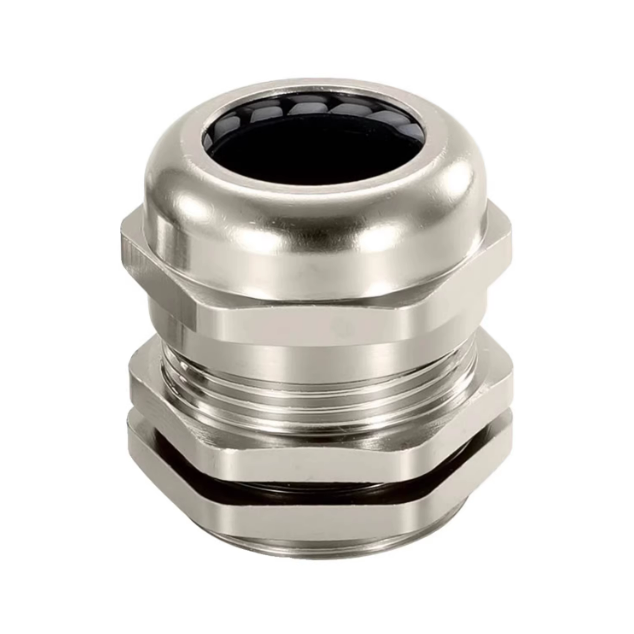

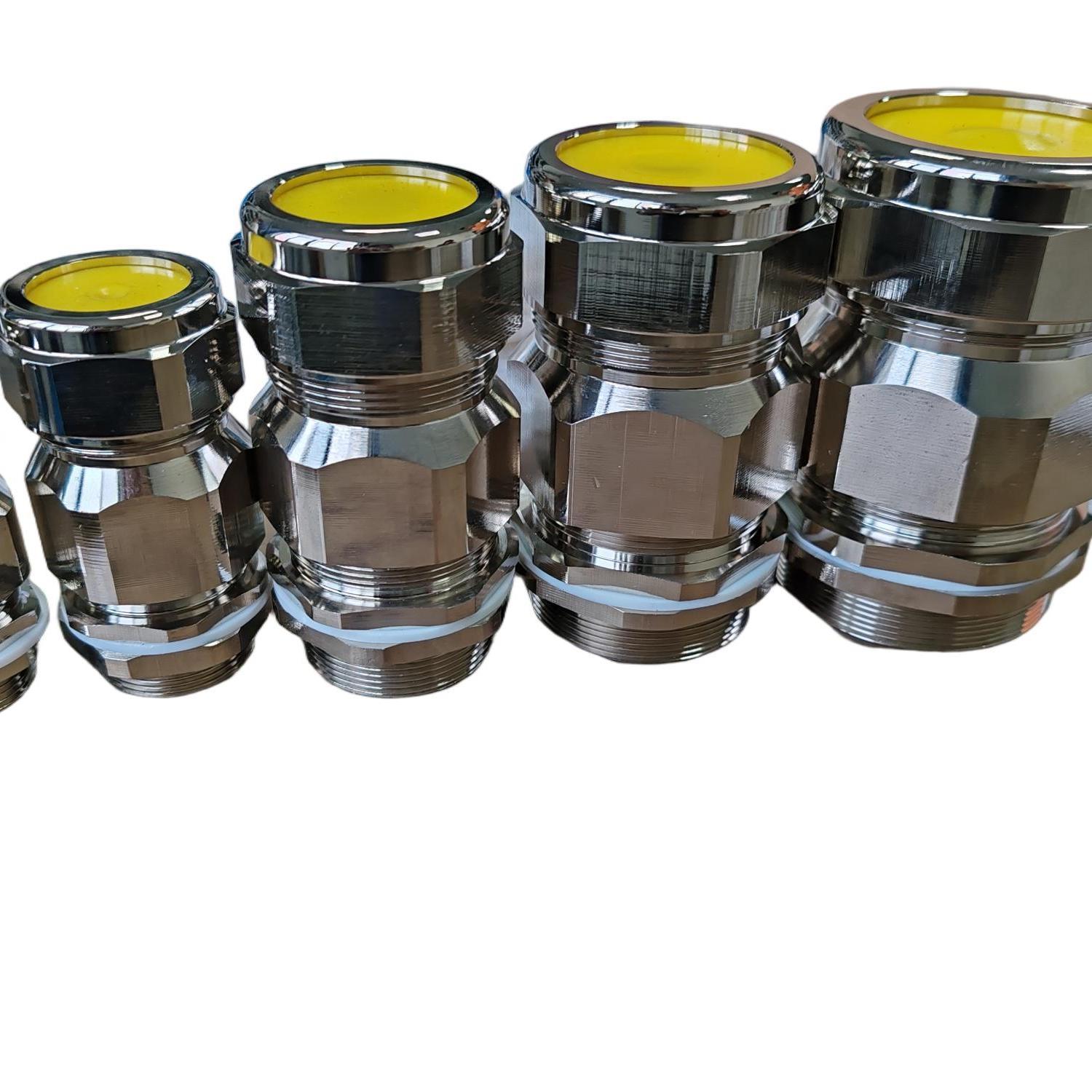

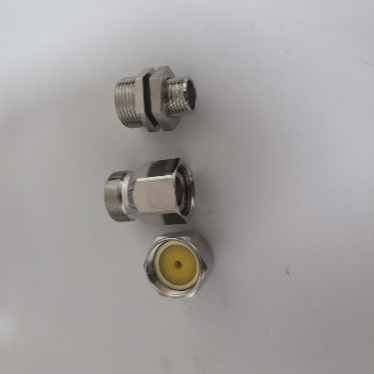

Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured 0
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured 1
